Metal button switch LED indicator light power on effect diagram.
LED color lights are available in red, green, blue, yellow, and white for selection.
You can also customize the dual color light button.
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
N:Brass clad Chromium
S:Stainless steel
Contact： 10:1NO / 11: 1NO1NC / 22: 2NO2NC
The shell material: brass clad Chromium.stainless steel
Operation: momentary / maintained
IP degree: lP65

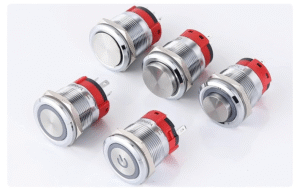

The product models that can be produced are as follows:

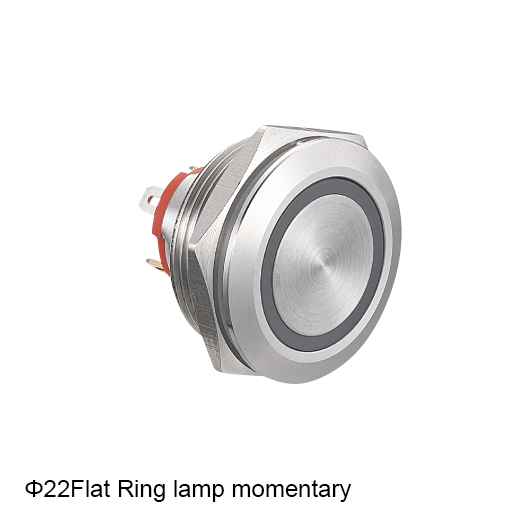

| Φ 22 Flat ring lamp momentary metal button | 4PIN Short pin terminal | YJ-GQ22BF- 10E/J/N YJ-GQ22BF- 10E/J/S |

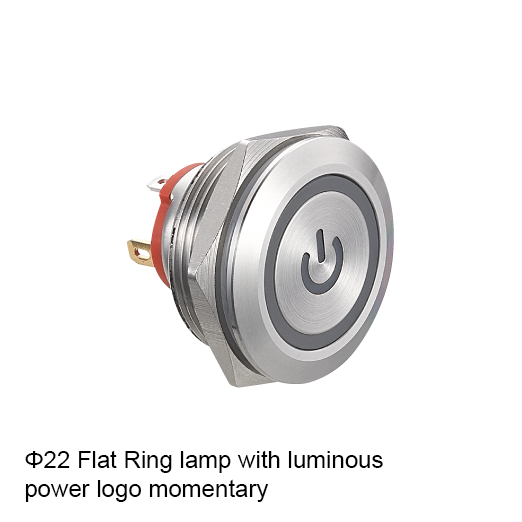

| Φ22 Flat ring lamp momentary metal button with luminous power logo | 4PIN Short pin terminal | YJ-GQ22BF- 10EP/J/N YJ-GQ22BF- 10EP/J/S |
| Φ 22 Flat momentary metal button | 3PIN 5A current high Pin terminal | YJ-GQ22BF- 11/N YJ-GQ22BF- 11/S |

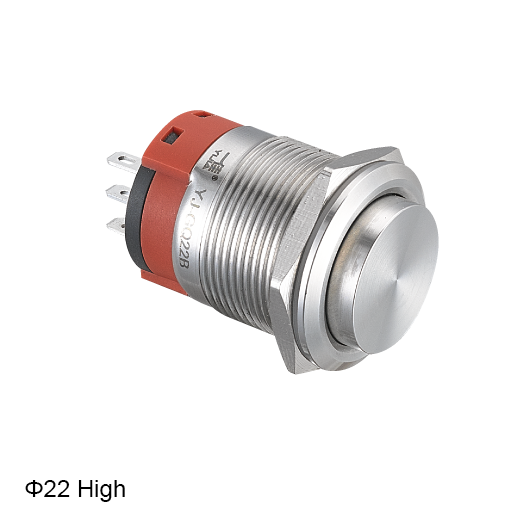

| Φ 22 High momentary metal button | 3PIN 5A current high Pin terminal | YJ-GQ22BH- 11/N YJ-GQ22BH- 11/S |
| Φ 22 Flat maintained metal button | 3PIN 5A current high Pin terminal | YJ-GQ22BF- 11Z/N YJ-GQ22BF- 11Z/S |
| Φ 22 High maintained metal button | 3PIN 5A current high Pin terminal | YJ-GQ22BH- 11Z/N YJ-GQ22BH- 11Z/S |

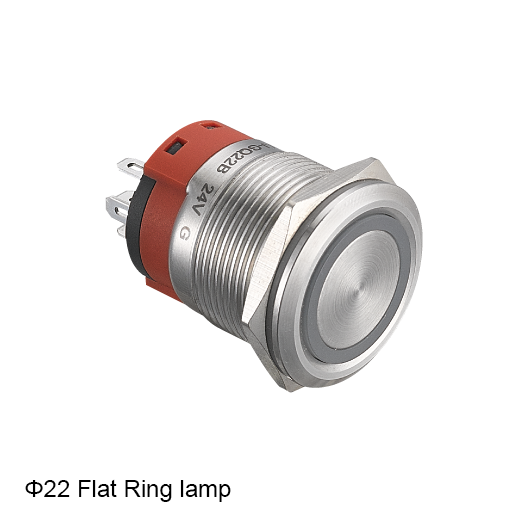

| Φ 22 Flat ring lamp momentary metal button | 5PIN 5A current high Pin terminal | YJ-GQ22BF- 11E/N YJ-GQ22BF- 11E/S |
| Φ 22 High ring lamp momentary metal button | 5PIN 5A current high Pin terminal | YJ-GQ22BH- 11E/N YJ-GQ22BH- 11E/S |
| Φ 22 Flat ring lamp maintained metal button | 5PIN 5A current high Pin terminal | YJ-GQ22BF- 11EZ/N YJ-GQ22BF- 11EZ/S |
| Φ 22 High ring lamp maintained metal button | 5PIN 5A current high Pin terminal | YJ-GQ22BH- 11EZ/N YJ-GQ22BH- 11EZ/S |

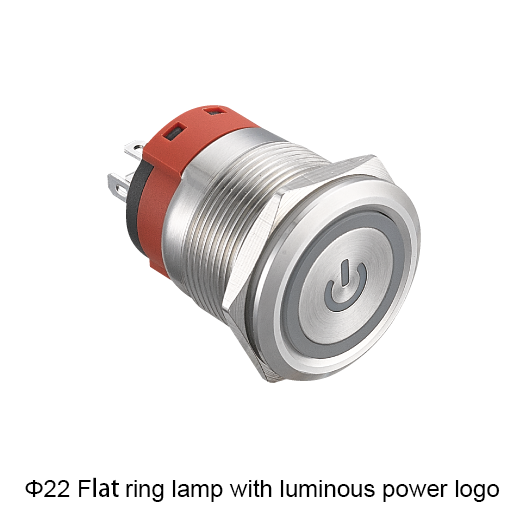

| Φ 22 Flat ring lamp momentary metal button with luminous power logo | 5PIN 5A current high Pin terminal | YJ-GQ22BF- 11EP/N YJ-GQ22BF- 11EP/S |
| Φ 22 Flat ring lamp maintained metal button with luminous power logo | 5PIN 5A current high Pin terminal | YJ-GQ22BF- 11EZP/N YJ-GQ22BF- 11EZP/S |
| GQ22B customizable 2NO2NC | increase 1NO1NC | The model has changed from 11 to 22 |
| GQ22B Socket | GQ22Bseries | YJ-GQ22BSocket(2wires) |
| GQ22B Socket | GQ22Bseries | YJ-GQ22BSocket(3wires) |
| GQ22B Socket | GQ22Bseries | YJ-GQ22BSocket(4wires) |
| GQ22B Socket | GQ22Bseries | YJ-GQ22BSocket(5wires) |
| GQ22B Socket | GQ22Bseries | YJ-GQ22BSocket(6wires) |
| GQ22B Socket | GQ22Bseries | YJ-GQ22BSocket(8wires) |
Contact switch description:
N0: Default state, always disconnected; When pressed, the contact closes
NC: Default state, always closed; When pressed, the contact opens
Button Function Description
Self recovery: Press the button, release it and immediately bounce back to its original position
Self locking: Lock when pressed, unlock when pressed again, and bounce back to its original position
YJ-GQ22B LED lights up when pressed
Self locking button effect: Press the button, the light will turn on and the device will be powered on, Release the button and the power will not be cut off;
Press the button again, the light will turn off and the device will be powered off.
Self resetting button effect: Press and hold the button, the light will turn on while the device is powered on, release the button and the light will turn off while the device is powered off.
YJ-GQ22B LED light keeps on
Self locking button effect: Press the button to power on the device, release it and keep it powered off. Press the button again to power off the device
Self resetting button effect: Press and hold the button to power on the device, release it to power off the device
