φ16MM Aluminum alloy plating Black led light metal push button switch

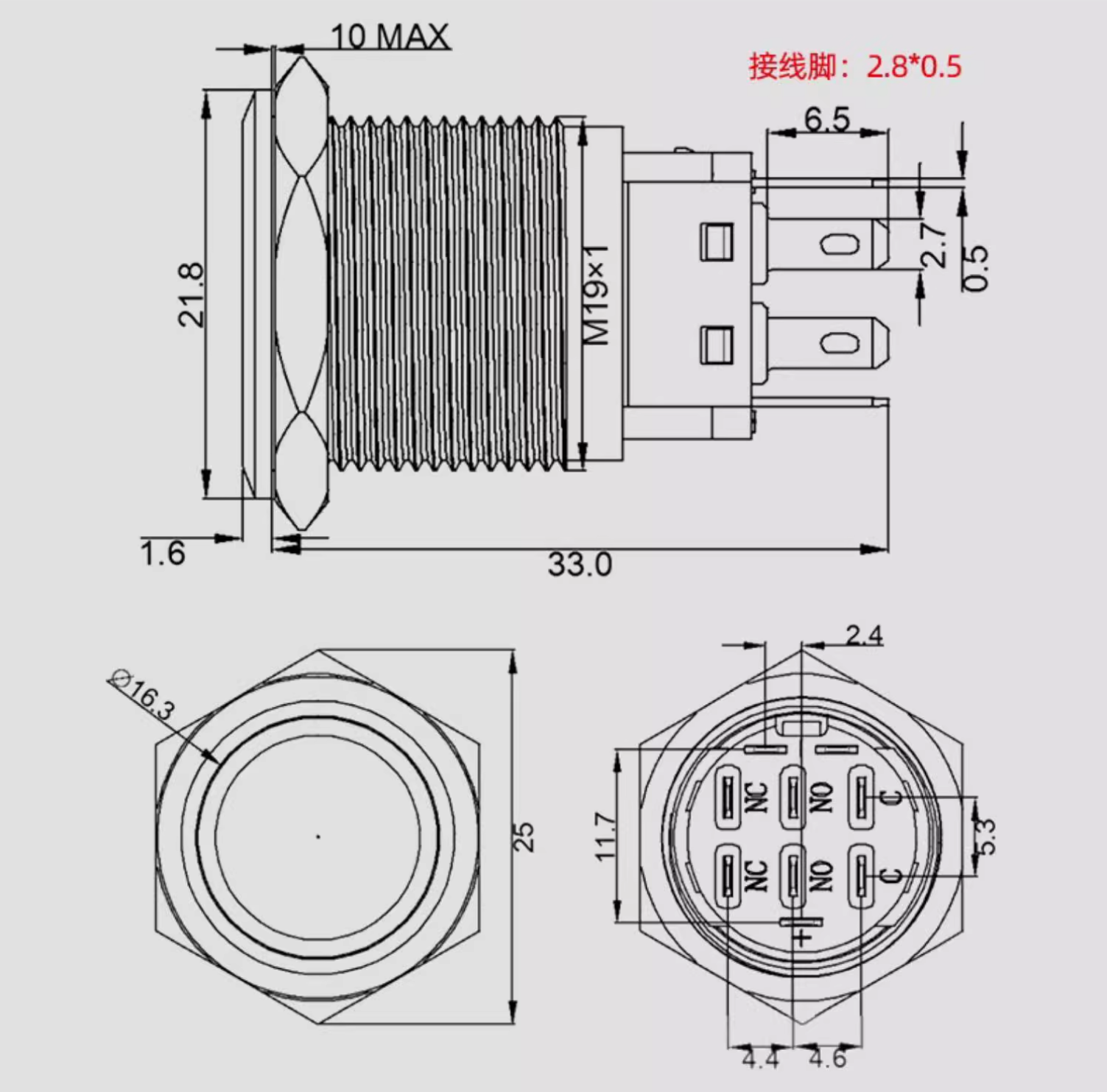

φ19MM Aluminum alloy plating Black led light metal push button switch
Φ22MM 18A Current Aluminum alloy plating Black led light metal push button switch
Metal button switch LED indicator light power on effect diagram.
LED color lights are available in red, green, blue, yellow, and white for selection.
You can also customize the dual color light button.
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
Contact：11: 1NO1NC / 22: 2NO2NC
Operation: momentary / maintained
IP degree: lP65
Current: 5A/10A/18A
The shell material:Aluminum alloy plating Black plating
IP65 waterproof effect
Contact switch description:
N0: Default state, always disconnected; When pressed, the contact closes
NC: Default state, always closed; When pressed, the contact opens
Button Function Description
Self recovery: Press the button, release it and immediately bounce back to its original position
Self locking: Lock when pressed, unlock when pressed again, and bounce back to its original position
LED lights up when pressed
Self locking button effect: Press the button, the light will turn on and the device will be powered on, Release the button and the power will not be cut off;
Press the button again, the light will turn off and the device will be powered off.
Self resetting button effect: Press and hold the button, the light will turn on while the device is powered on, release the button and the light will turn off while the device is powered off.
Current: 5A/10A/18A wiring method
Current: 5A wiring method
Current: 10A wiring method
Current: 18A wiring method
LED light keeps on
Self locking button effect: Press the button to power on the device, release it and keep it powered off. Press the button again to power off the device
Self resetting button effect: Press and hold the button to power on the device, release it to power off the device
Current: 5A wiring method
Current: 10A wiring method
Current: 18A wiring method
