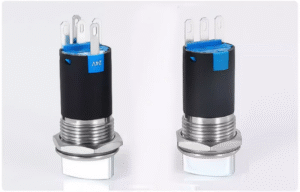

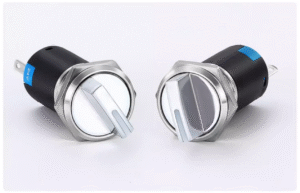

Metal button switch LED indicator light power on effect diagram.

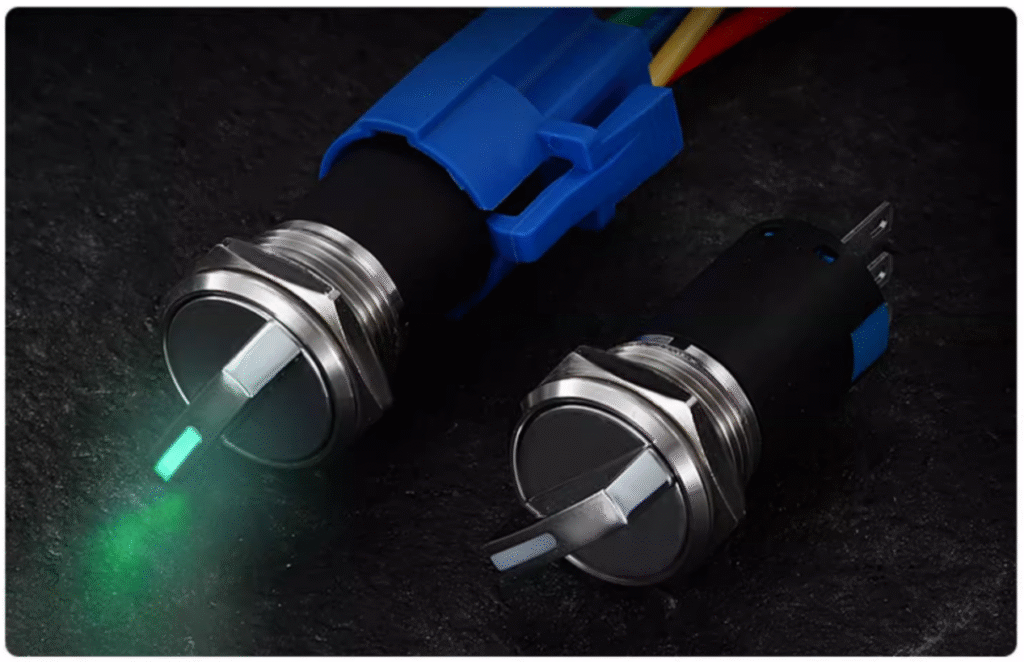

LED color lights are available in red, green, blue, yellow, and white for selection.
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
N: Brass clad Chromium
S: Stainless steel
Contact: 11: 1NO1NC / 22: 2NO2NC
The shell material: brass clad Chromium.stainless steel
21: Two position maintained / 31: Three position maintained
IP degree: lP40
The product models that can be produced are as follows:

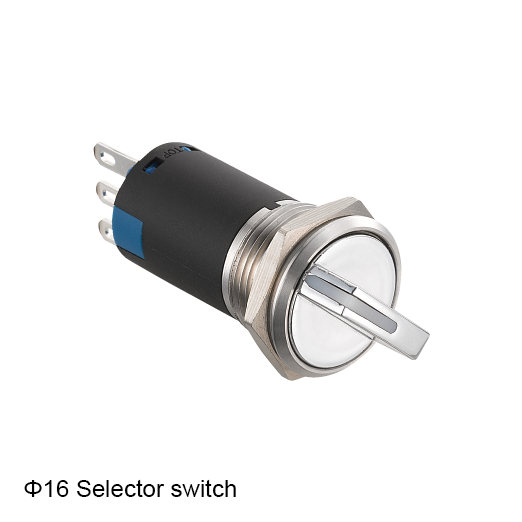

| Φ 16 Two position selector switch | Two position maintained | YJ-GQ16- 11X/21/S |
| Φ 16 Three position selector switch | Three position maintained | YJ-GQ16-22X/31/S |

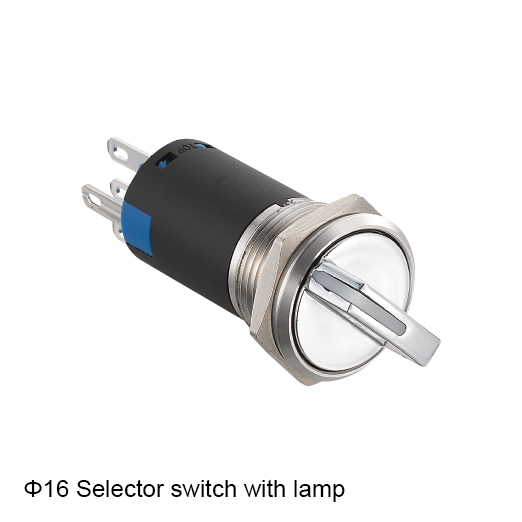

| Φ 16 Two position selector switch with lamp | Two position maintained | YJ-GQ16- 11XD/21/S |
| Φ 16 Three position selector switch with lamp | Three position maintained | YJ-GQ16-22XD/31/S |
Contact switch description:
N0: Default state, always disconnected; When pressed, the contact closes
NC: Default state, always closed; When pressed, the contact opens

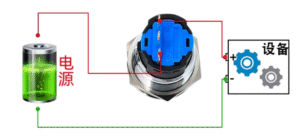

NO：wiring method

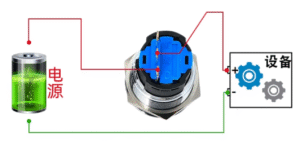

NC：wiring method
