N:Brass clad Chromium
S:Stainless steel
Contact： 11: 1NO1NC / 22: 2NO2NC
The shell material: brass clad Chromium.stainless steel
Operation: Push lock rotary release type
IP degree: lP54
The product models that can be produced are as follows:

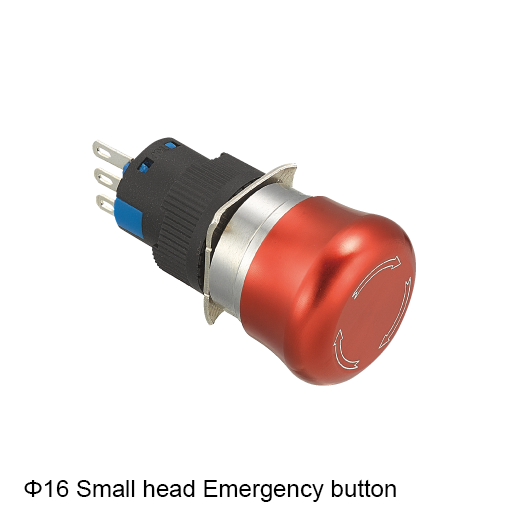

| Φ 16 Small head Emergency button | Push lock rotary release type | YJ-GQ16- 11ZS/N YJ-GQ16- 11ZS/S |
| Φ 16 Small head Emergency button | Push lock rotary release type | YJ-GQ16-22ZS/N YJ-GQ16-22ZS/S |

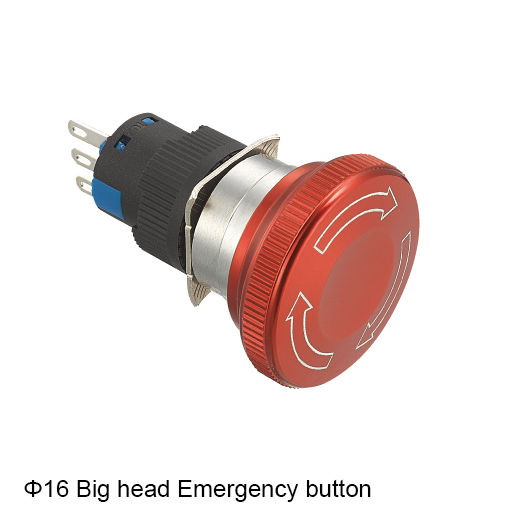

| Φ 16 Big head Emergency button | Push lock rotary release type | YJ-GQ16- 11ZS/A/N YJ-GQ16- 11ZS/A/S |
| Φ 16 Big head Emergency button | Push lock rotary release type | YJ-GQ16-22ZS/A/N YJ-GQ16-22ZS/A/S |
Contact switch description
N0: Default state, always disconnected; When pressed, the contact closes
NC: Default state, always closed; When pressed, the contact opens

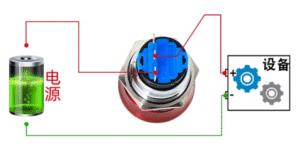

NC: wiring method

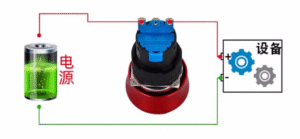

NO: wiring method
