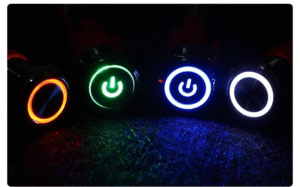

Metal button switch LED indicator light power on effect diagram.
LED color lights are available in red, green, blue, yellow, and white for selection.
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
N:Brass clad Chromium
S:Stainless steel
Contact： 11: 1NO1NC / 20:2NO
The shell material: brass clad Chromium.stainless steel
Operation: momentary / maintained
IP degree: lP65
Current:18A

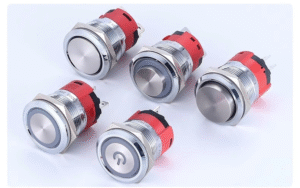

The product models that can be produced are as follows:

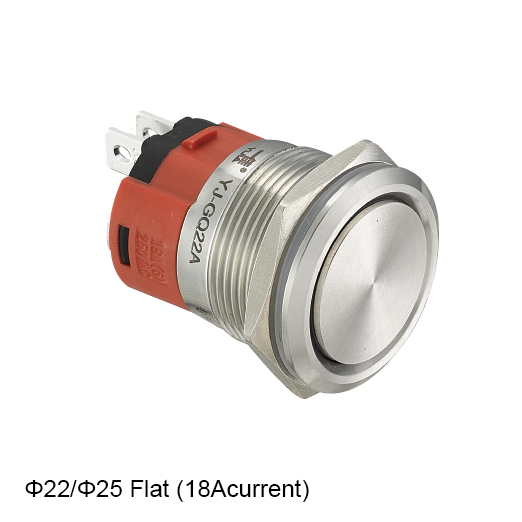

| Φ 22 Flat momentary metal button | 18A current | YJ-GQ22AF- 11/N YJ-GQ22AF- 11/S |
| Φ 22 Flat maintained metal button | 18A current | YJ-GQ22AF- 11Z/N YJ-GQ22AF- 11Z/S |
| Φ 22 High momentary metal button | 18A current | YJ-GQ22AH- 11/N YJ-GQ22AH- 11/S |
| Φ 22 High maintained metal button | 18A current | YJ-GQ22AH- 11Z/N YJ-GQ22AH- 11Z/S |
| Φ 22 Flat ring lamp momentary metal button | 18A current | YJ-GQ22AF- 11E/N YJ-GQ22AF- 11E/S |
| Φ 22 Flat ring lamp maintained metal button | 18A current | YJ-GQ22AF- 11EZ/N YJ-GQ22AF- 11EZ/S |
| Φ 22 High ring lamp momentary metal button | 18A current | YJ-GQ22AH- 11E/N YJ-GQ22AH- 11E/S |
| Φ 22 High ring lamp maintained metal button | 18A current | YJ-GQ22AH- 11EZ/N YJ-GQ22AH- 11EZ/S |
| Φ 22 Flat ring lamp momentary metal button with luminous power logo | 18A current | YJ-GQ22AF- 11EP/N YJ-GQ22AF- 11EP/S |
| Φ 22 Flat ring lamp maintained metal button with luminous power logo | 18A current | YJ-GQ22AF- 11EZP/N YJ-GQ22AF- 11EZP/S |
| GQ22A Socket | 6 wires | YJ-GQ22A- 1NO1NClamp wires or YJ-GQ22A-2NOlamp wires |
| GQ22A Socket | 4 wires | YJ-GQ22A- 1NOlamp wires or YJ-GQ22A- 1NClamp wires |
| GQ22A Socket | 4 wires | YJ-GQ22A- 1NO1NC or YJ-GQ22A-2NO |
| GQ22A Socket | 2 wires | YJ-GQ22A- 1NO or YJ-GQ22A- 1NC |
| GQ22A Socket accessory | please consult | please consult |
| GQ25A Socket accessory | please consult | please consult |
| Φ 25 Flat momentary metal button | 18A current | YJ-GQ25AF- 11/S |
| Φ 25 Flat maintained metal button | 18A current | YJ-GQ25AF- 11Z/S |
| Φ 25 High momentary metal button | 18A current | YJ-GQ25AH- 11/S |
| Φ 25 High maintained metal button | 18A current | YJ-GQ25AH- 11Z/S |
| Φ 25 Flat ring lamp momentary metal button | 18A current | YJ-GQ25AF- 11E/S |
| Φ 25 Flat ring lamp maintained metal button | 18A current | YJ-GQ25AF- 11EZ/S |
| Φ 25 High ring lamp momentary metal button | 18A current | YJ-GQ25AH- 11E/S |
| Φ 25 High ring lamp maintained metal button | 18A current | YJ-GQ25AH- 11EZ/S |
| Φ 25 Flat ring lamp momentary metal button with luminous power logo | 18A current | YJ-GQ25AF- 11EP/S |
| Φ 25 Flat ring lamp maintained metal button with luminous power logo | 18A current | YJ-GQ25AF- 11EZP/S |
Contact switch description:
N0: Default state, always disconnected; When pressed, the contact closes
NC: Default state, always closed; When pressed, the contact opens
Button Function Description
Self recovery: Press the button, release it and immediately bounce back to its original position
Self locking: Lock when pressed, unlock when pressed again, and bounce back to its original position
YJ-GQ22A/GQ25A LED lights up when pressed
Self locking button effect: Press the button, the light will turn on and the device will be powered on, Release the button and the power will not be cut off;
Press the button again, the light will turn off and the device will be powered off.
Self resetting button effect: Press and hold the button, the light will turn on while the device is powered on, release the button and the light will turn off while the device is powered off.
YJ-GQ22A/GQ25A LED light keeps on
Self locking button effect: Press the button to power on the device, release it and keep it powered off. Press the button again to power off the device
Self resetting button effect: Press and hold the button to power on the device, release it to power off the device
