N:Brass clad Chromium
S:Stainless steel
Contact： 11: 1NO1NC / 22: 2NO2NC
The shell material: brass clad Chromium.stainless steel
Operation: Push lock rotary release type
IP degree: lP54
The product models that can be produced are as follows:

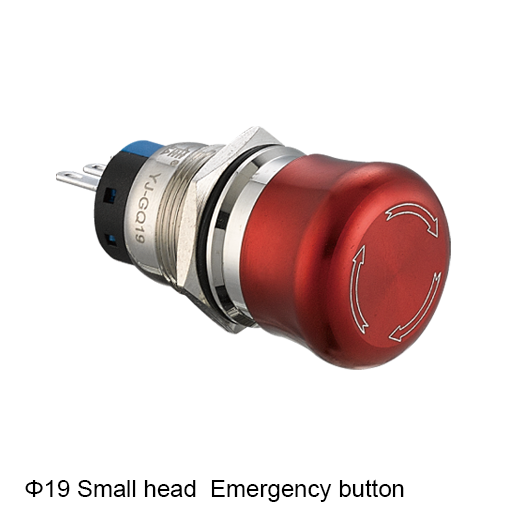

| Φ 19 Small head Emergency button | Push lock rotary release type | YJ-GQ19- 11ZS/N YJ-GQ19- 11ZS/S |
| Φ 19 Small head Emergency button | Push lock rotary release type | YJ-GQ19-22ZS/N YJ-GQ19-22ZS/S |

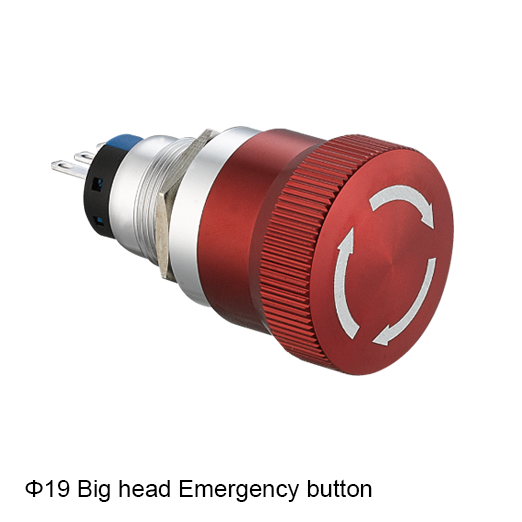

| Φ 19 Big head Emergency button | Push lock rotary release type | YJ-GQ19- 11ZS/A/N YJ-GQ19- 11ZS/A/S |
| Φ 19 Big head Emergency button | Push lock rotary release type | YJ-GQ19-22ZS/A/N YJ-GQ19-22ZS/A/S |

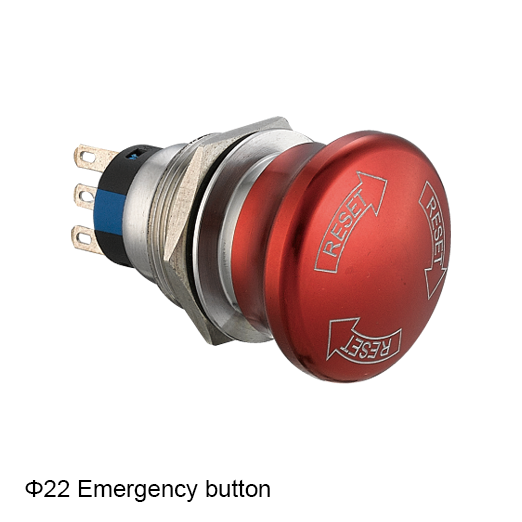

| Φ 22 Emergency button | Push lock rotary release type | YJ-GQ22- 11ZS/N YJ-GQ22- 11ZS/S |
| Φ 22 Emergency button | Push lock rotary release type | YJ-GQ22-22ZS/N YJ-GQ22-22ZS/S |
Contact switch description:
N0: Default state, always disconnected; When pressed, the contact closes
NC: Default state, always closed; When pressed, the contact opens
NC: wiring method:
NO: wiring method:
