Metal button switch LED indicator light power on effect diagram.
LED color lights are available in red, green, blue, yellow, and white for selection.
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
N: Brass clad Chromium
S: Stainless steel
Contact: 22:2NO2NC
The shell material: brass clad Chromium.stainless steel
Operation: momentary / maintained
IP degree: lP65
The product models that can be produced are as follows:
| Φ 16 Flat momentary metal button | 2NO2NC | YJ-GQ16BF-22/N YJ-GQ16BF-22/S |
| Φ 16 High momentary metal button | 2NO2NC | YJ-GQ16BH-22/N YJ-GQ16BH-22/S |
| Φ 16 Flat maintained metal button | 2NO2NC | YJ-GQ16BF-22Z/N YJ-GQ16BF-22Z/S |
| Φ 16 High maintained metal button | 2NO2NC | YJ-GQ16BH-22Z/N YJ-GQ16BH-22Z/S |

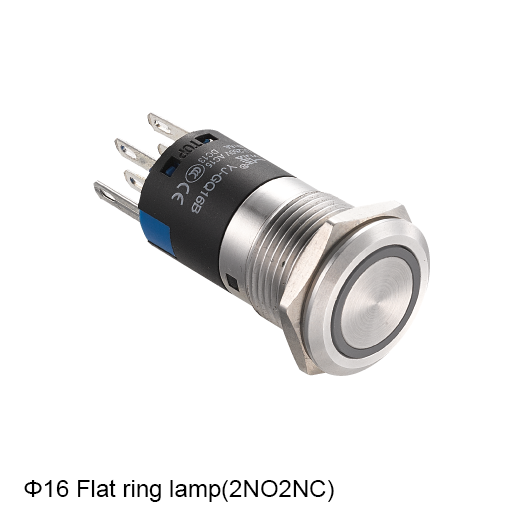

| Φ 16 Flat ring lamp momentary metal button | 2NO2NC | YJ-GQ16BF-22E/N YJ-GQ16BF-22E/S |

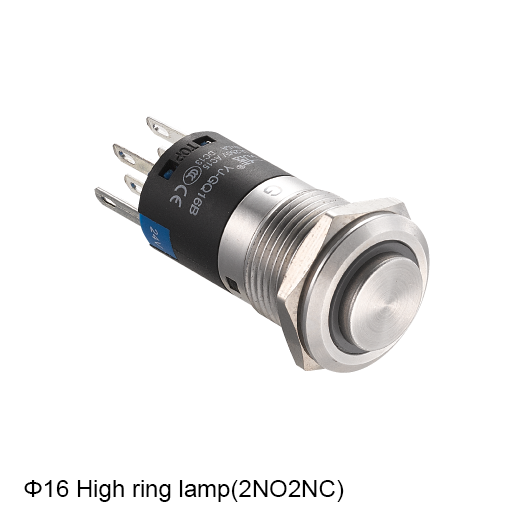

| Φ 16 High ring lamp momentary metal button | 2NO2NC | YJ-GQ16BH-22E/N YJ-GQ16BH-22E/S |
| Φ 16 Flat ring lamp maintained metal button | 2NO2NC | YJ-GQ16BF-22EZ/N YJ-GQ16BF-22EZ/S |
| Φ 16 High ring lamp maintained metal button | 2NO2NC | YJ-GQ16BH-22EZ/N YJ-GQ16BH-22EZ/S |
| Φ 16 Flat ring lamp momentary metal button with luminous power logo | 2NO2NC | YJ-GQ16BF-22EP/N \YJ-GQ16BF-22EP/S |
| Φ 16 Flat ring lamp maintained metal button with luminous power logo | 2NO2NC | YJ-GQ16BF-22EZP/N YJ-GQ16BF-22EZP/S |
| Φ 16 Flat momentary metal button with luminous power logo | 2NO2NC | YJ-GQ16BF-22DP/N YJ-GQ16BF-22DP/S |
| Φ 16 Flat maintained metal button with luminous power logo | 2NO2NC | YJ-GQ16BF-22DZP/N YJ-GQ16BF-22DZP/S |
Contact switch description:
N0: Default state, always disconnected; When pressed, the contact closes
NC: Default state, always closed; When pressed, the contact opens
