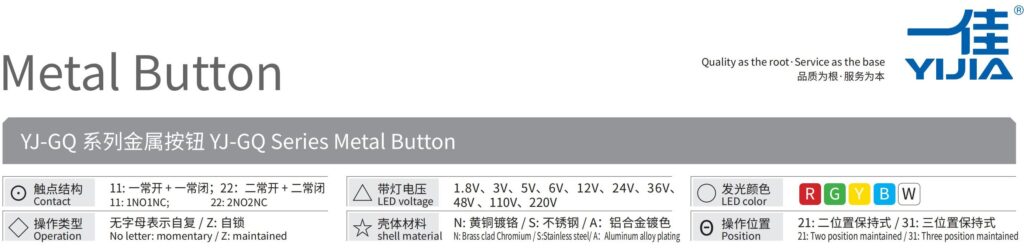

Waterproof industrial IP65
momentary / latching-cabinet latch
The shell material:stainless steel
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
| Name | Specifications | Model | Notes |

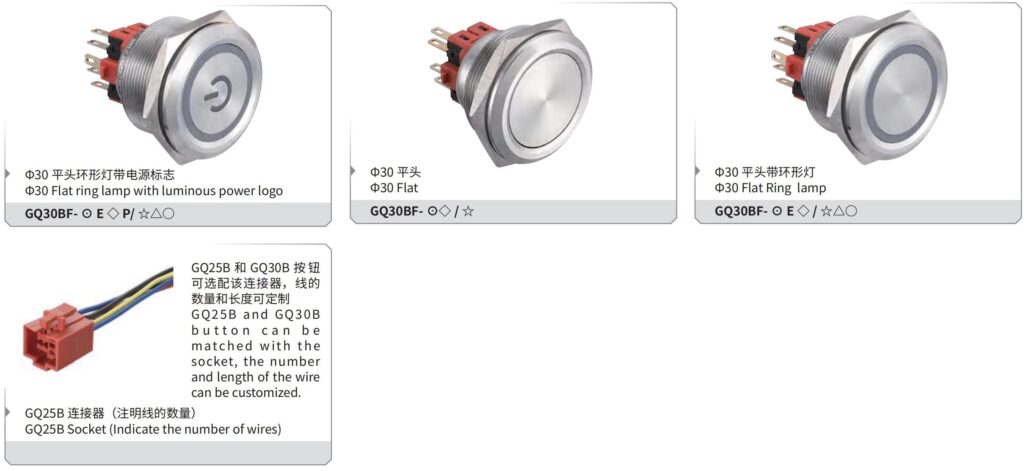

| Φ 30 Flat momentary metal button | 5A current high 4Pin terminal | GQ30BF- 11/S | |
| Φ 30 High momentary metal button | 5A current high 4Pin terminal | GQ30BH- 11/S | |
| Φ 30 Flat maintained metal button | 5A current high 4Pin terminal | GQ30BF- 11Z/S | |
| Φ 30 High maintained metal button | 5A current high 4Pin terminal | GQ30BH- 11Z/S | |
| Φ 30 Flat ring lamp momentary metal button | 5A current high 6Pin terminal | GQ30BF- 11E/S | |
| Φ 30 High ring lamp momentary metal button | 5A current high 6Pin terminal | GQ30BH- 11E/S | |
| Φ 30 Flat ring lamp maintained metal button | 5A current high 6Pin terminal | GQ30BF- 11EZ/S | |
| Φ 30 High ring lamp maintained metal button | 5A current high 6Pin terminal | GQ30BH- 11EZ/S | |
| Φ 30 Flat ring lamp momentary metal button with luminous power logo | 5A current high 6Pin terminal | GQ30BF- 11EP/S | |
| Φ 30 Flat ring lamp maintained metal button with luminous power logo | 5A current high 6Pin terminal | GQ30BF- 11EZP/S | |
| GQ30B customizable 2NO2NC 8PIN | increase 1NO1NC 8PIN | The model has changed from 11 to 22 | |
| Notes: 1. “/N”represents brass chrome plated housing， “/S”represents stainless steel housing. 2. Customizable color plated aluminum alloy shell，Please consult for specific prices.(Change the model suffix to“/A”) 3. GQ25、GQ30 defaults to stainless steel casing，If you need a large amount of brass chrome plated shell, you can consult for customization. 4. Packaging quantity：GQ6 is 50pcs in a box,GQ8 is 100pcs in a box,GQ10/GQ12 is 50pcs in a box,GQ16/GQ19 is 25pcs in a box,GQ22/GQ25/GQ30 is 10pcs in a box. | |||
