Installation dimensions:22MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.
LA36MA Series button switch 22MM

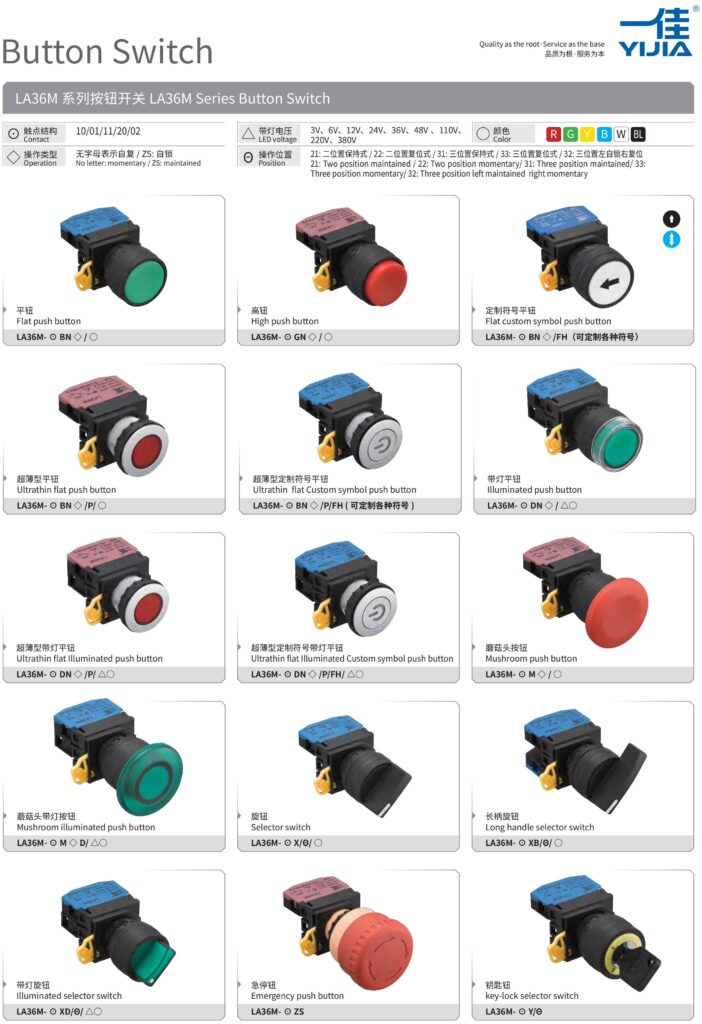

| LA36M Series button switch(Φ 22) | |||
| Name | Specifications | Model | Notes |
| Momentary push button | Flat push button | LA36M- 10BN | 10：1NO |
| latching-cabinet latch push button | Flat push button | LA36M- 10BNZS | 11：1NO1NC |
| Momentary illuminated push button | Flat push button | LA36M- 10DN | |
| latching-cabinet latch illuminated push button | Flat push button | LA36M- 10DNZS | |
| Momentary push button | Ultrathin flat push button | LA36M- 10BN/P | |
| latching-cabinet latch push button | Ultrathin flat push button | LA36M- 10BNZS/P | |
| Momentary illuminated push button | Ultrathin flat push button | LA36M- 10DN/P | |
| Momentary illuminated push button | Ultrathin flat custom symbol push button | LA36M- 10DN/P/FH | |
| latching-cabinet latch illuminated push button | Ultrathin flat push button | LA36M- 10DNZS/P | |
| latching-cabinet latch illuminated push button | Ultrathin flat custom symbol push button | LA36M- 10DNZS/P/FH | |
| Momentary push button | High push button | LA36M- 10GN | |
| latching-cabinet latch push button | High push button | LA36M- 10GNZS | |
| Momentary push button | Φ 40Mushroom push button | LA36M- 10M | |
| latching-cabinet latch push button | Mushroom push button | LA36M- 10MZS | |
| Momentary illuminated push button | Φ 40Mushroom push button | LA36M- 10MD | |
| latching-cabinet latch illuminated push button | Mushroom push button | LA36M- 10MZSD | |
| Selector switch | Two position maintained | LA36M- 10X/21 | |
| Selector switch | Two position momentary | LA36M- 10X/22 | |
| Selector switch | Three position maintained | LA36M-20X/31 | 20:2NO |
| Selector switch | Three position momentary | LA36M-20X/33 | |
| Selector switch | Three position left maintained right momentary | LA36M-20X/32 | |
| Long handle selector switch | Two position maintained | LA36M- 10XB/21 | |
| Long handle selector switch | Two position momentary | LA36M- 10XB/22 | |
| Long handle selector switch | Three position maintained | LA36M-20XB/31 | |
| Long handle selector switch | Three position momentary | LA36M-20XB/33 | |
| Illuminated selector switch | Two position maintained | LA36M- 10XD/21 | |
| Illuminated selector switch | Two position momentary | LA36M- 10XD/22 | |
| Illuminated selector switch | Three position maintained | LA36M-20XD/31 | |
| Illuminated selector switch | Three position momentary | LA36M-20XD/33 | |
| Push lock rotary release button | Φ 40 Emergency push button | LA36M-01ZS | 01:1NC |
| Key-lock selector switch | Two position maintained | LA36M- 10Y/21 | |
| Key-lock selector switch | Two position momentary | LA36M- 10Y/22 | |
| Key-lock selector switch | Three position maintained | LA36M-20Y/31 | |
| Key-lock selector switch | Three position momentary | LA36M-20Y/33 | |
| Contact module | 1NOor1NC | 10or01 | |
| Combined contact module | 2NOor2NCor1NO1NC | 20or02or11 | |
| Notes:1.Packaging quantity： 10pcs in a box,300pcs in a carton. | |||

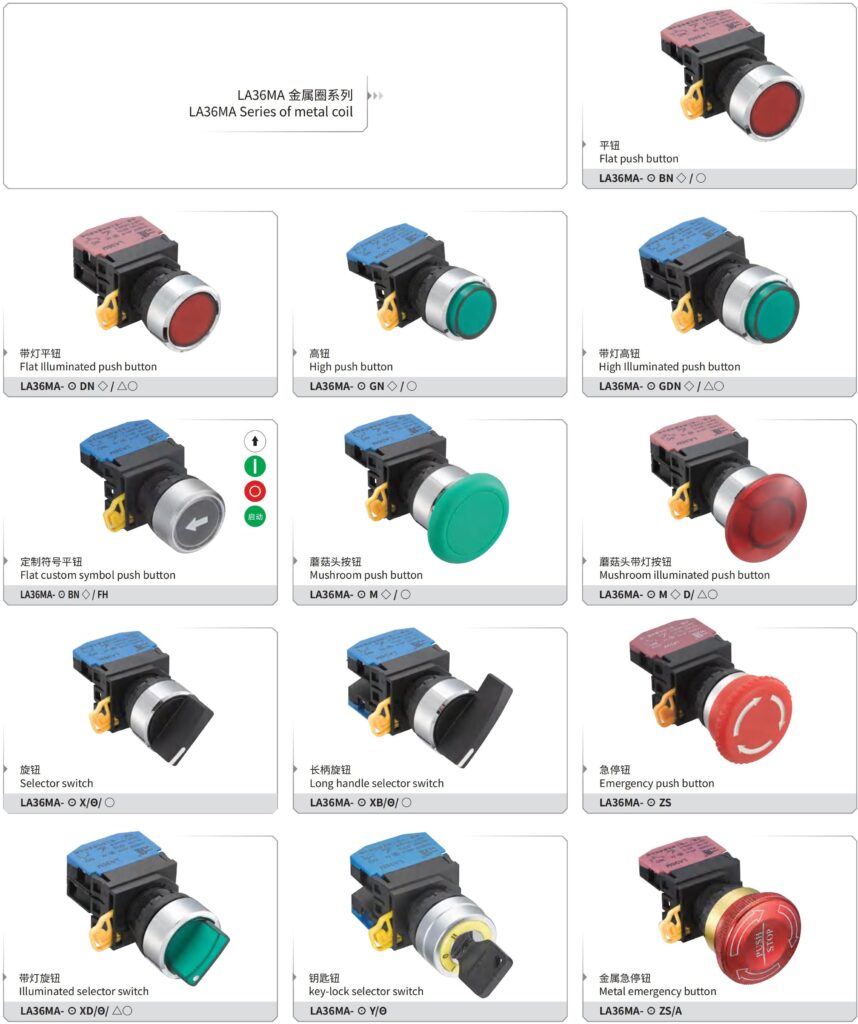

| LA36MA Series button switch(Φ 22) | |||
| Name | Specifications | Model | Notes |
| Momentary push button | Flat push button | LA36MA- 10BN | 10：1NO |
| latching-cabinet latch push button | Flat push button | LA36MA- 10BNZS | 11：1NO1NC |
| Momentary illuminated push button | Flat push button | LA36MA- 10DN | |
| latching-cabinet latch illuminated push button | Flat push button | LA36MA- 10DNZS | |
| Momentary push button | High push button | LA36MA- 10GN | |
| latching-cabinet latch push button | High push button | LA36MA- 10GNZS | |
| Momentary push button | Φ 40 Mushroom push button | LA36MA- 10M | |
| latching-cabinet latch push button | Mushroom push button | LA36MA- 10MZS | |
| Momentary illuminated push button | Φ 40 Mushroom push button | LA36MA- 10MD | |
| latching-cabinet latch illuminated push button | Mushroom push button | LA36MA- 10MZSD | |
| Selector switch | Two position maintained | LA36MA- 10X/21 | |
| Selector switch | Two position momentary | LA36MA- 10X/22 | |
| Selector switch | Three position maintained | LA36MA-20X/31 | 20:2NO |
| Selector switch | Three position momentary | LA36MA-20X/33 | |
| Selector switch | Three position left maintained right momentary | LA36MA-20X/32 | |
| Long handle selector switch | Two position maintained | LA36MA- 10XB/21 | |
| Long handle selector switch | Two position momentary | LA36MA- 10XB/22 | |
| Long handle selector switch | Three position maintained | LA36MA-20XB/31 | |
| Long handle selector switch | Three position momentary | LA36MA-20XB/33 | |
| Illuminated selector switch | Two position maintained | LA36MA- 10XD/21 | |
| Illuminated selector switch | Two position momentary | LA36MA- 10XD/22 | |
| Illuminated selector switch | Three position maintained | LA36MA-20XD/31 | |
| Illuminated selector switch | Three position momentary | LA36MA-20XD/33 | |
| Push lock rotary release button | Φ 40 Emergency push button | LA36MA-01ZS | |
| Push lock rotary release button | Metal emergency button | LA36MA-01ZS/A | |
| Key-lock selector switch | Two position maintained | LA36MA- 10Y/21 | |
| Key-lock selector switch | Two position momentary | LA36MA- 10Y/22 | |
| Key-lock selector switch | Three position maintained | LA36MA-20Y/31 | |
| Key-lock selector switch | Three position momentary | LA36MA-20Y/33 | |
| Contact module | 1NOor1NC | 10or01 | |
| Combined contact module | 2NOor2NCor1NO1NC | 20or02or11 | |
| Notes:1. Packaging quantity： 10pcs in a box,300pcs in a carton. | |||
