Installation dimensions:22MM/30MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.

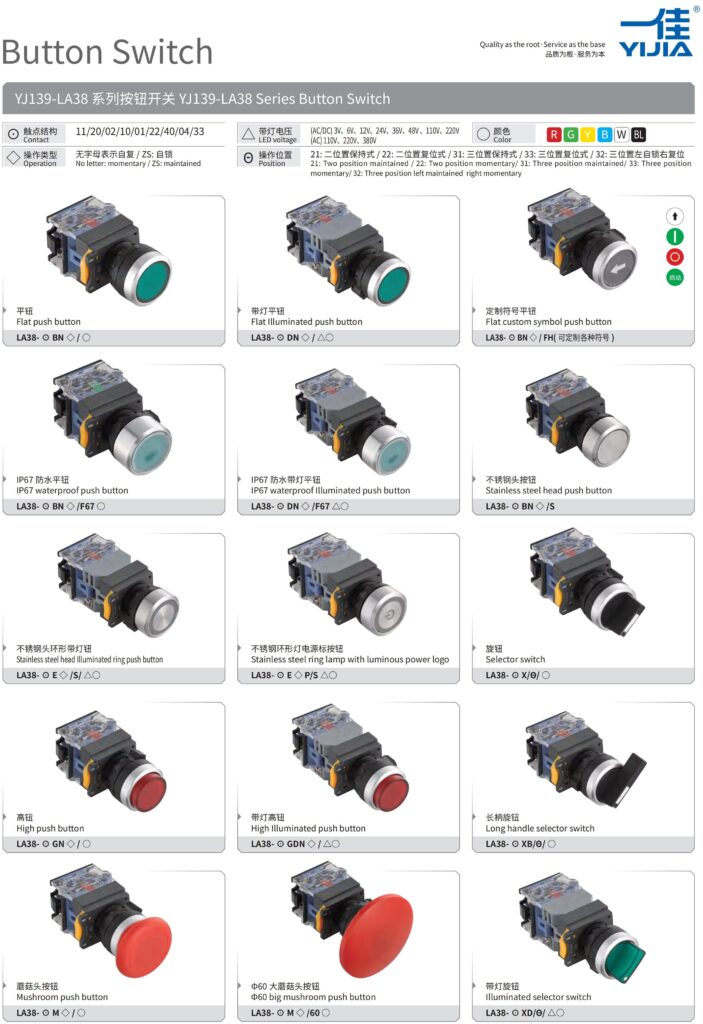

| Name | Specifications | Model | Notes |
| Momentary push button | Flat push button | LA38- 11BN | |
| Flat custom symbol momentary push button | Flat push button | LA38- 11BN/FH | |
| latching-cabinet latch push button | Flat push button | LA38- 11BNZS | |
| IP67 waterproof momentary push button | Flat push button | LA38- 11BN/F67 | |
| IP67 waterproof latching-cabinet latch push button | Flat push button | LA38- 11BNZS/F67 | |
| Momentary illuminated push button | Flat push button | LA38- 11DN | |
| latching-cabinet latch illuminated push button | Flat push button | LA38- 11DNZS | |
| IP67 waterproof momentary illuminated push button | Flat push button | LA38- 11DN/F67 | |
| IP67 waterproof latching-cabinet latch illuminated push button | Flat push button | LA38- 11DNZS/F67 | |
| Aluminum ring with ring lamp momentary push button | Flat push button | LA38- 11E/A | |
| Aluminum ring with ring lamp latching-cabinet latch push button | Flat push button | LA38- 11EZ/A | |
| Momentary push button | High push button | LA38- 11GN | |
| latching-cabinet latch push button | High push button | LA38- 11GNZS | |
| Momentary illuminated push button | High push button | LA38- 11DGN | |
| latching-cabinet latch illuminated push button | High push button | LA38- 11DGNZS | |
| Momentary push button | Φ 40 Mushroom push button | LA38- 11M | |
| latching-cabinet latch push button | Mushroom push button | LA38- 11MZS | |
| Momentary illuminated push button | Φ 40 Mushroom push button | LA38- 11MD | |
| latching-cabinet latch illuminated push button | Mushroom push button | LA38- 11MZSD | |
| Momentary push button | Φ 60 Mushroom push button | LA38- 11M/60 | Big mushroom |
| latching-cabinet latch push button | Mushroom push button | LA38- 11MZS/60 | Big mushroom |
| Stainless steel head momentary push button | Flat push button | LA38- 11BN/S | Stainless steel head |
| Stainless steel head latching-cabinet latch push button | Flat push button | LA38- 11BNZS/S | Stainless steel head |
| Stainless steel head illuminated ring momentary push button | Flat push button | LA38- 11E/S | Stainless steel head |
| Stainless steel ring lamp momentary button with luminous power logo | Flat push button | LA38- 11EP/S | Stainless steel head |
| Stainless steel head illuminated ring latching-cabinet latch push button | Flat push button | LA38- 11EZ/S | Stainless steel head |
| Stainless steel ring lamp latching-cabinet latch button with luminous power logo | Flat push button | LA38- 11EZP/S | Stainless steel head |
| Selector switch | Two position maintained | LA38- 11X/21 | |
| Selector switch | Two position momentary | LA38- 11X/22 | |
| Selector switch | Three position maintained | LA38-20X/31 | |
| Selector switch | Three position momentary | LA38-20X/33 | |
| Selector switch | Three position left maintained right momentary | LA38-20X/32 | |
| Long handle selector switch | Two position maintained | LA38- 11XB/21 | |
| Long handle selector switch | Two position momentary | LA38- 11XB/22 | |
| Long handle selector switch | Three position maintained | LA38-20XB/31 | |
| Long handle selector switch | Three position momentary | LA38-20XB/33 | |
| Illuminated selector switch | Two position maintained | LA38- 11XD/21 | |
| Illuminated selector switch | Two position momentary | LA38- 11XD/22 | |
| Illuminated selector switch | Three position maintained | LA38-20XD/31 | |
| Illuminated selector switch | Three position momentary | LA38-20XD/33 | |

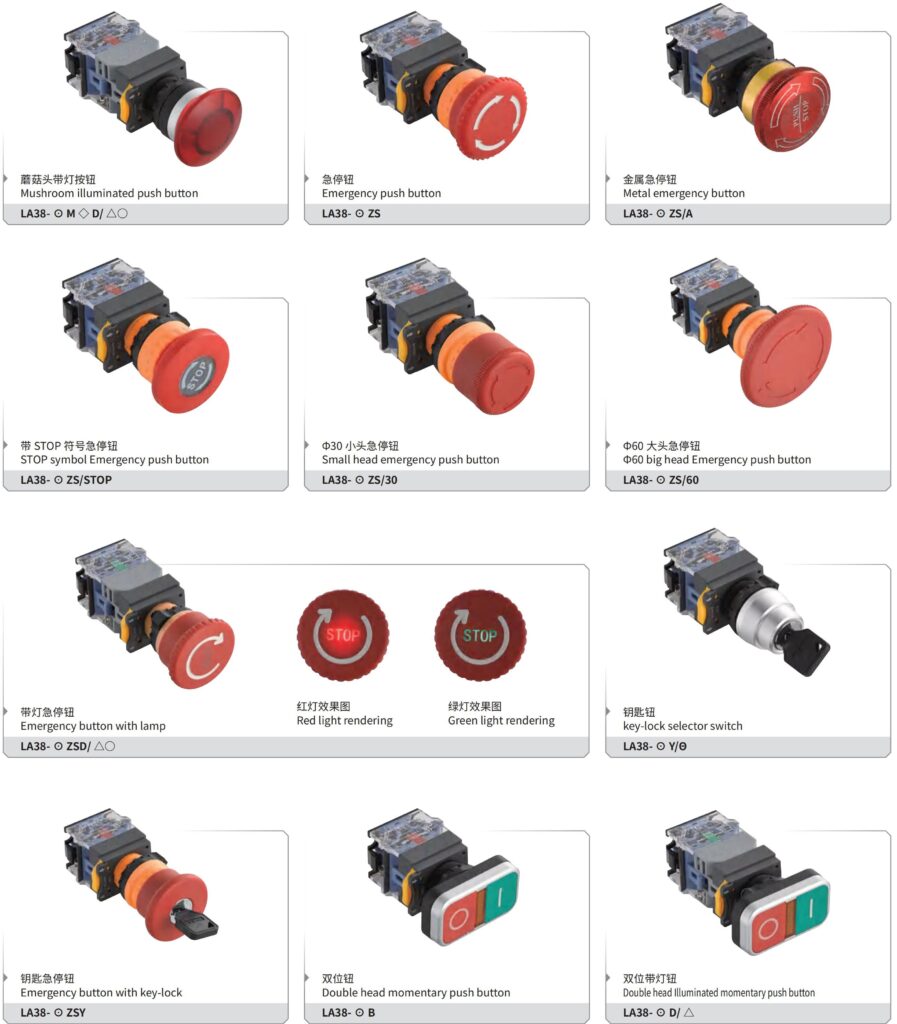

| Φ 40 Emergency push button | Push lock rotary release type | LA38- 11ZS | |
| Φ 40 Emergency button with lamp | Push lock rotary release type | LA38- 11ZSD | |
| Φ 30 Emergency push button | Push lock rotary release type | LA38- 11ZS/30 | |
| Φ 60 Emergency push button | Push lock rotary release type | LA38- 11ZS/60 | |
| STOP symbol Emergency push button | Push lock rotary release type | LA38- 11ZS/STOP | |
| Metal head emergency button | Push lock rotary release type | LA38- 11ZS/A | |
| Metal head emergency button | Push lock rotary release type | LA38- 11ZS/B | |
| Emergency button with key-lock | Push lock rotary release type | LA38- 11ZSY | |
| Key-lock selector switch | Two position maintained | LA38- 11Y/21 | |
| Key-lock selector switch | Two position momentary | LA38- 11Y/22 | |
| Key-lock selector switch | Three position maintained | LA38-20Y/31 | |
| Key-lock selector switch | Three position momentary | LA38-20Y/33 | |
| Momentary push button | Double head momentary push button | LA38- 11B | |
| Momentary illuminated push button | Double head momentary push button | LA38- 11D | |
| Contact module | increase1NO1NC | 11 | |
| Contact module | increase1NO | 10 | |
| Contact module | increase1NC | 01 | |
| Notes: 1. All of the above are Φ 22 Product Price， 2. Add 0.52USD per item for product Φ30， Add 1.1USD per item for product Φ30key-lock button。take care Φ The 30 emergency button can only be used for the STOP symbol emergency push button. 3. Packaging quantity： 10pcs in a box,300pcs in a carton. | |||
