Waterproof industrial IP65/IP67（Can be customized）
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
The shell material: brass clad Chromium.stainless steel
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.

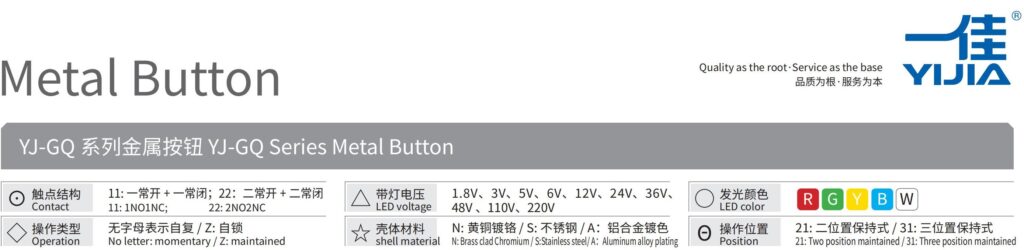

| Name | Specifications | Model | Notes |

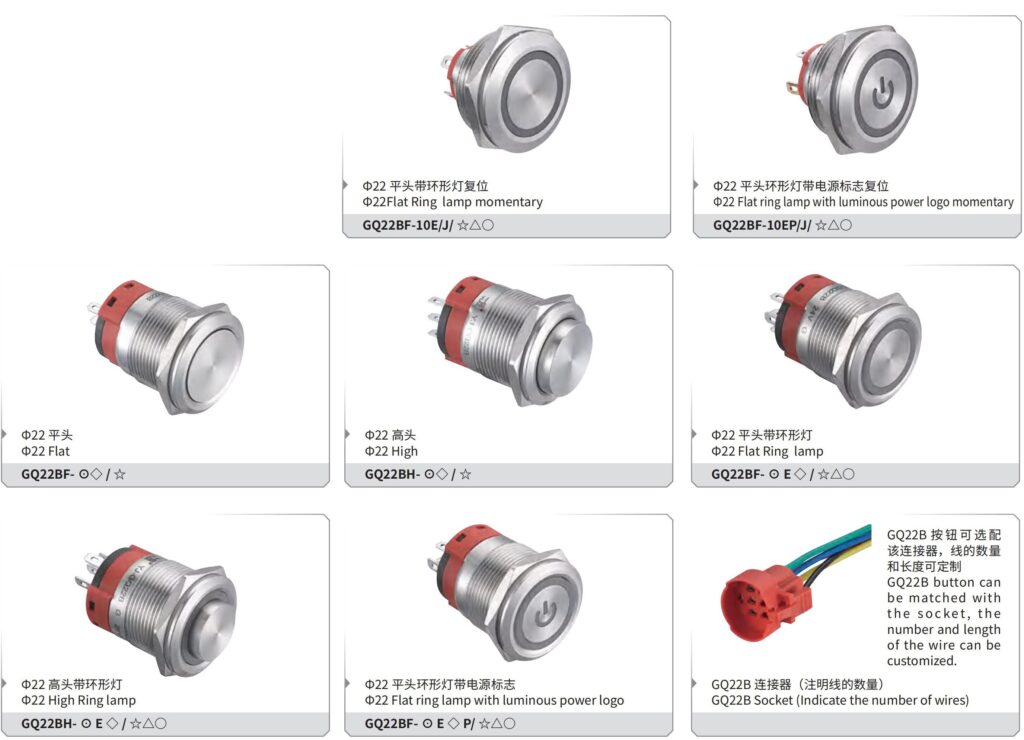

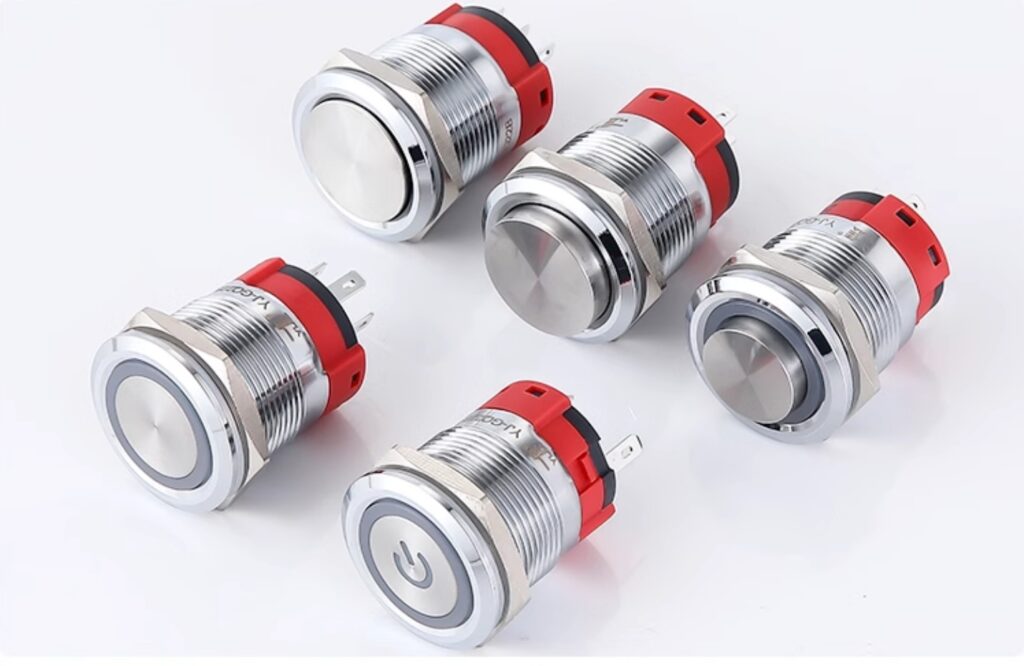

| Φ 22 Flat ring lamp momentary metal button | Short pin terminal | GQ22BF- 10E/J/N | customized Bicolor lamp May make to order stainless steel housing customized IP67 |
| Φ22 Flat ring lamp momentary metal button with luminous power logo | Short pin terminal | GQ22BF- 10EP/J/N | |
| Φ 22 Flat momentary metal button | 5A current high Pin terminal | GQ22BF- 11/N | |
| Φ 22 High momentary metal button | 5A current high Pin terminal | GQ22BH- 11/N | |
| Φ 22 Flat maintained metal button | 5A current high Pin terminal | GQ22BF- 11Z/N | |
| Φ 22 High maintained metal button | 5A current high Pin terminal | GQ22BH- 11Z/N | |
| Φ 22 Flat ring lamp momentary metal button | 5A current high Pin terminal | GQ22BF- 11E/N | |
| Φ 22 High ring lamp momentary metal button | 5A current high Pin terminal | GQ22BH- 11E/N | |
| Φ 22 Flat ring lamp maintained metal button | 5A current high Pin terminal | GQ22BF- 11EZ/N | |
| Φ 22 High ring lamp maintained metal button | 5A current high Pin terminal | GQ22BH- 11EZ/N | |
| Φ 22 Flat ring lamp momentary metal button with luminous power logo | 5A current high Pin terminal | GQ22BF- 11EP/N | |
| Φ 22 Flat ring lamp maintained metal button with luminous power logo | 5A current high Pin terminal | GQ22BF- 11EZP/N | |
| GQ22B customizable 2NO2NC | increase 1NO1NC | The model has changed from 11 to 22 | |
| GQ22B Socket | GQ22Bseries | GQ22BSocket(2wires) | Customizable wires length |
| GQ22B Socket | GQ22Bseries | GQ22BSocket(3wires) | |
| GQ22B Socket | GQ22Bseries | GQ22BSocket(4wires) | |
| GQ22B Socket | GQ22Bseries | GQ22BSocket(5wires) | |
| GQ22B Socket | GQ22Bseries | GQ22BSocket(6wires) | |
| GQ22B Socket | GQ22Bseries | GQ22BSocket(8wires) | |

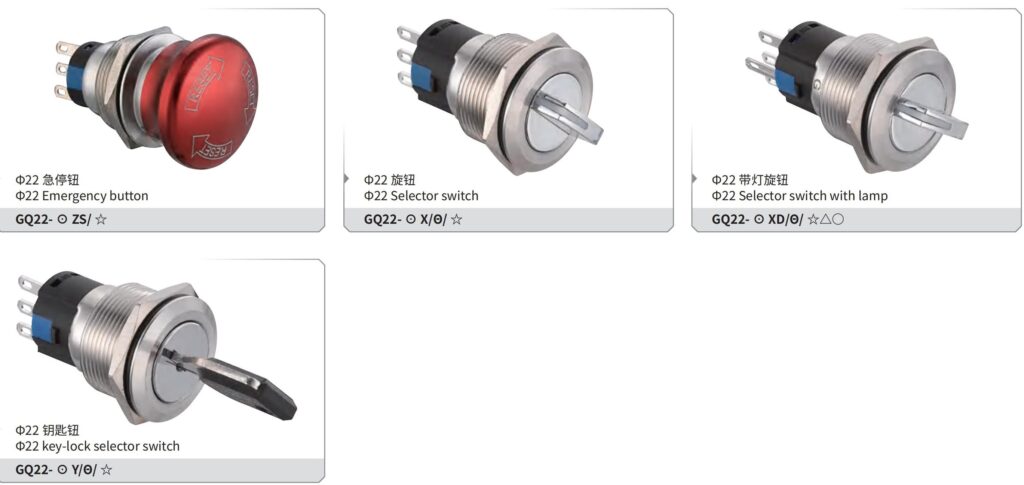

| Φ 22 Emergency button | Push lock rotary release type | GQ22- 11ZS/N | May make to order stainless steel housing |
| Φ 22 Emergency button | Push lock rotary release type | GQ22-22ZS/N | |
| Φ 22 Two position selector switch | Two position maintained | GQ22- 11X/21/N | |
| Φ 22 Three position selector switch | Three position maintained | GQ22-22X/31/N | |
| Φ 22 Two position selector switch with lamp | Two position maintained | GQ22- 11XD/21/N | |
| Φ 22 Three position selector switch with lamp | Three position maintained | GQ22-22XD/31/N | |
| Φ 22 Two position key-lock selector switch | Two position maintained | GQ22- 11Y/21/N | |
| Φ 22 Three position key-lock selector switch | Three position maintained | GQ22-22Y/31/N |
Notes:
1. “/N”represents brass chrome plated housing， “/S”represents stainless steel housing.
2. Customizable color plated aluminum alloy shell，Please consult for specific prices.(Change the model suffix to“/A”)
3. GQ25、GQ30 defaults to stainless steel casing，If you need a large amount of brass chrome plated shell, you can consult for customization.
4. Packaging quantity：GQ6 is 50pcs in a box,GQ8 is 100pcs in a box,GQ10/GQ12 is 50pcs in a box,GQ16/GQ19 is 25pcs in a box,GQ22/GQ25/GQ30 is 10pcs in a box.
