The 12mm metal button switch is a compact, industrial-grade operating component widely used for equipment control in high-precision, high-frequency, and harsh environments.
Its core feature lies in the high strength and durability of metal materials, combined with diversified functional design, to meet the control needs of different scenarios.
The following is a comprehensive analysis of its technical characteristics, application areas, and development trends:
Technical characteristics
1. Structure and Materials
12mm metal button switches are usually made of stainless steel, nickel-plated brass, or copper alloy as the shell material. The surface has undergone anti-corrosion treatment and has impact resistance and wear resistance characteristics. Some models have a protection level of IP65/IP67, which is suitable for dust, humidity, and high-temperature environments. The internal contacts are mostly made of silver alloy material, with a contact resistance as low as 50 mΩ or less, ensuring stable signal transmission.
2. Electrical performance
The rated current and voltage range vary depending on the model, and common specifications include 2A/36VDC, 3A/250VAC, etc. It supports 1NO/1NC (single normally open/single normally closed) or double break contact structure. The mechanical lifespan can reach 500000 to 5 million cycles, and the electrical lifespan is about 50000 to 100000 cycles, suitable for frequent operation scenarios.
3. Operation types and customization

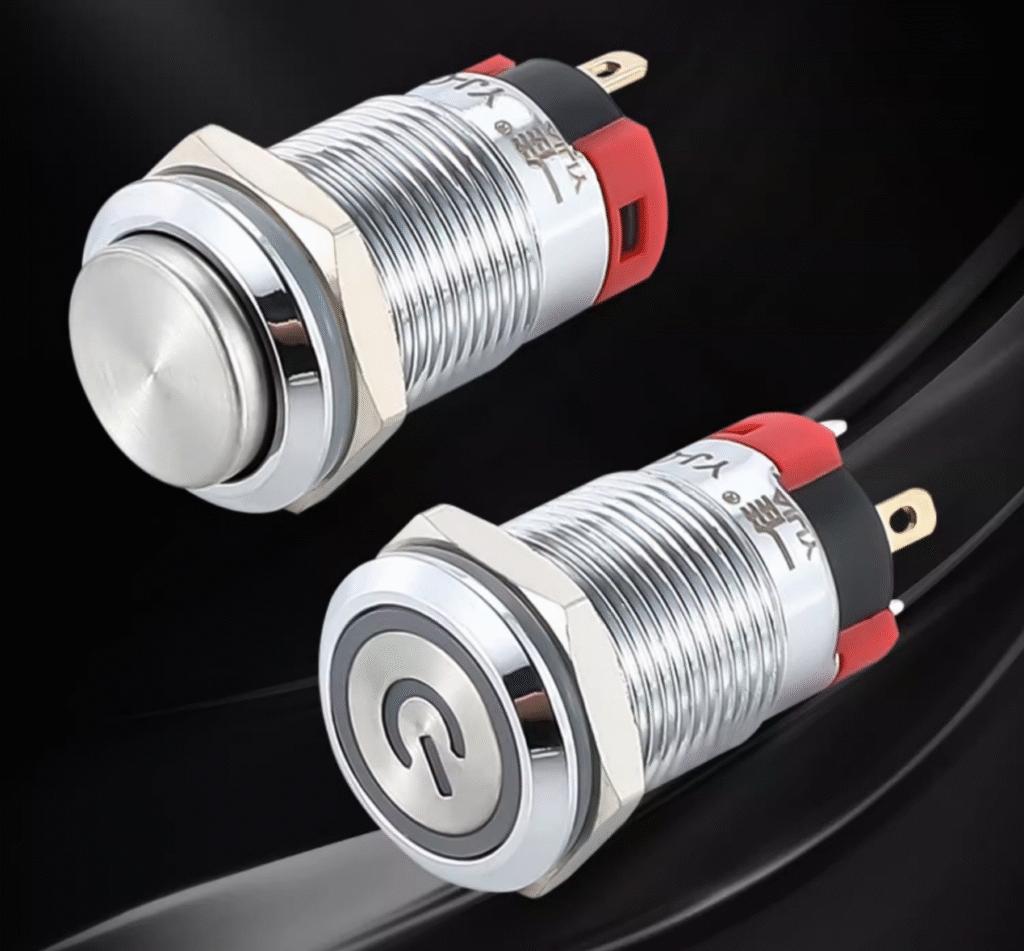

The operation mode covers two types: self-reset (instantaneous action) and self-locking (holding state). The head shape can be a flat, circular, high flat or textured design. Some models support LED backlights (ring or center light), and the light pressure can be selected from 220V. Multiple color identifications are provided, including red, green, blue, yellow, white, etc. Flexible installation, suitable for panel thickness of 1-10mm, and the tail wiring method is mostly plug-in or welded.
Application Fields
1. Industrial Control
In industries such as petroleum, chemical, and power, it is used for control cabinets, emergency stop buttons, or equipment start/stop. Its IP67 protection level and wide temperature adaptability (-25°C to +75°C) ensure reliability in extreme environments.
2. Automobiles and Rail Transit
Applied to the center console, door switches, and seat adjustment, the metallic texture enhances the luxury of the equipment while meeting the durability requirements in high-vibration environments.
3. Medical and Consumer Electronics
Medical instruments require a sterile operating environment, with stainless steel casings that are easy to clean and corrosion-resistant; consumer electronics products such as high-end headphones and smart devices utilize their tactile feedback advantages to enhance user experience.
4. Smart Home and Automation
In smart home appliances such as refrigerators and washing machines, there is a future trend that combines waterproof functionality and long lifespan, supporting touch- or sensor-based interaction.
Future Development Trends
1. Intelligent integration
Integrating sensor technology, developing towards touch sensing and wireless control, supporting intelligent recognition and remote operation, and enhancing interactive diversity.
2. Environmental Protection and Energy Conservation
Adopting recyclable metal materials and low-power LED backlighting, in compliance with RoHS standards, reduces carbon footprint in production and use.
3. Miniaturization and multifunctionality
The 12mm diameter design is already suitable for compact spaces and will further integrate multi-contact modules in the future, such as composite signal output or status indication functions, to meet the high integration requirements of Industry 4.0.
The 12mm metal button switch has become a key component in the industrial and consumer fields due to its high strength, long lifespan, and flexible customization capabilities.
With the upgrading of intelligence and environmental protection requirements, its technological iteration will focus more on multifunctional integration and sustainability, further expanding its application potential in emerging fields such as the Internet of Things and new energy.
