Waterproof industrial IP65/IP67（Can be customized）
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
The shell material: brass clad Chromium.stainless steel
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.

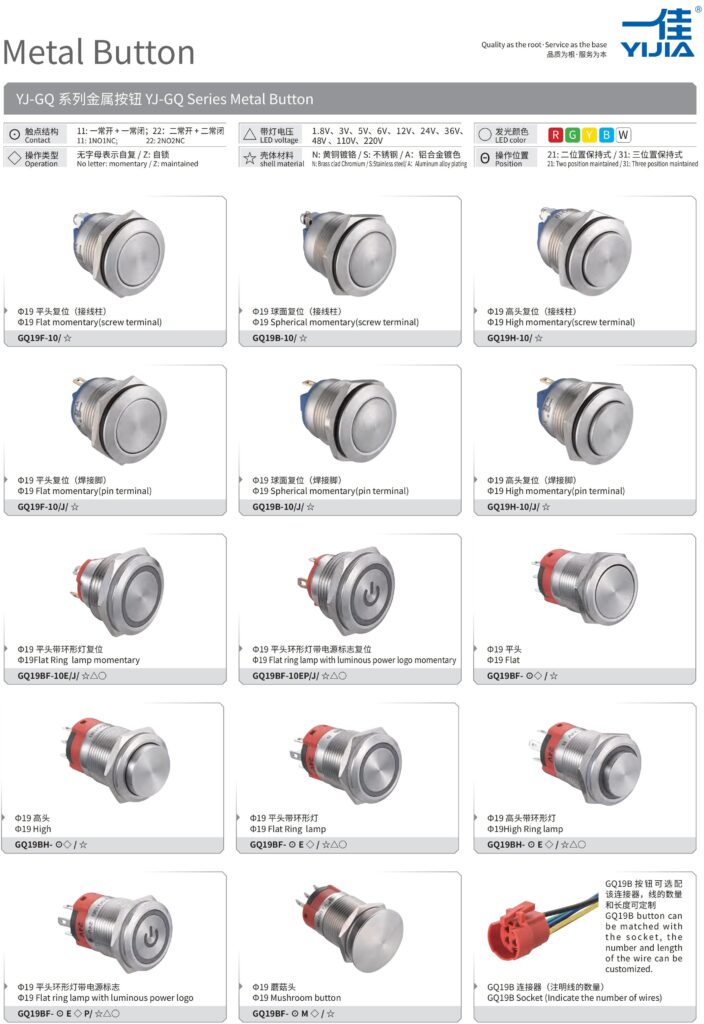

| Name | Specifications | Model | Notes |
| Φ 19 Flat momentary metal button | Short Screw terminal | GQ19F- 10/N | May make to order stainless steel housing |
| Φ 19 High momentary metal button | Short Screw terminal | GQ19H- 10/N | |
| Φ 19 Spherical momentary metal button | Short Screw terminal | GQ19B- 10/N | |
| Φ 19 Flat momentary metal button | Short pin terminal | GQ19F- 10/J/N | |
| Φ 19 High momentary metal button | Short pin terminal | GQ19H- 10/J/N | |
| Φ 19 Spherical momentary metal button | Short pin terminal | GQ19B- 10/J/N | |
| Φ 19 Flat ring lamp momentary metal button | Short pin terminal | GQ19BF- 10E/J/N | customized Bicolor lamp May make to order stainless steel housing customized IP67 |
| Φ 19 Flat ring lamp momentary metal button with luminous power logo | Short pin terminal | GQ19BF- 10EP/J/N | |
| Φ 19 Flat momentary metal button | 5A current high Pin terminal | GQ19BF- 11/N | |
| Φ 19 High momentary metal button | 5A current high Pin terminal | GQ19BH- 11/N | |
| Φ 19 Flat maintained metal button | 5A current high Pin terminal | GQ19BF- 11Z/N | |
| Φ 19 High maintained metal button | 5A current high Pin terminal | GQ19BH- 11Z/N | |
| Φ 19 Flat ring lamp momentary metal button | 5A current high Pin terminal | GQ19BF- 11E/N | |
| Φ 19 High ring lamp momentary metal button | 5A current high Pin terminal | GQ19BH- 11E/N | |
| Φ 19 Flat ring lamp maintained metal button | 5A current high Pin terminal | GQ19BF- 11EZ/N | |
| Φ 19 High ring lamp maintained metal button | 5A current high Pin terminal | GQ19BH- 11EZ/N | |
| Φ 19 Flat ring lamp momentary metal button with luminous power logo | 5A current high Pin terminal | GQ19BF- 11EP/N | |
| Φ 19 Flat ring lamp maintained metal button with luminous power logo | 5A current high Pin terminal | GQ19BF- 11EZP/N | |
| Φ 19 Mushroom momentary button | 5A current high Pin terminal | GQ19BF- 11M/N | |
| Φ 19 Mushroom maintained button | 5A current high Pin terminal | GQ19BF- 11MZ/N | |
| GQ19B customizable 2NO2NC | increase 1NO1NC | The model has changed from 11 to 22 | |
| GQ19B Socket | GQ19Bseries | GQ19BSocket(2wires) | Customizable wires length |
| GQ19B Socket | GQ19Bseries | GQ19BSocket(3wires) | |
| GQ19B Socket | GQ19Bseries | GQ19BSocket(4wires) | |
| GQ19B Socket | GQ19Bseries | GQ19BSocket(5wires) | |
| GQ19B Socket | GQ19Bseries | GQ19BSocket(6wires) | |
| GQ19B Socket | GQ19Bseries | GQ19BSocket(8wires) | |

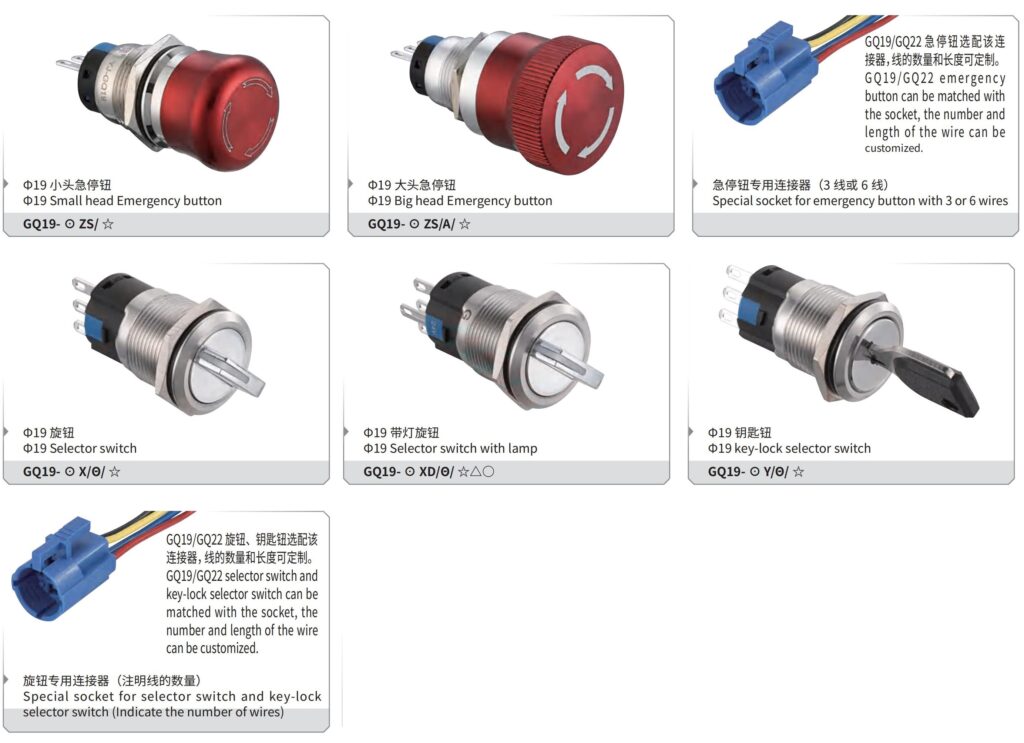

| Φ 19 Small head Emergency button | Push lock rotary release type | GQ19- 11ZS/N | |
| Φ 19 Small head Emergency button | Push lock rotary release type | GQ19-22ZS/N | |
| Φ 19 Big head Emergency button | Push lock rotary release type | GQ19- 11ZS/A/N | May make to order stainless steel housing |
| Φ 19 Big head Emergency button | Push lock rotary release type | GQ19-22ZS/A/N | |
| Φ 19 Two position selector switch | Two position maintained | GQ19- 11X/21/N | |
| Φ 19 Three position selector switch | Three position maintained | GQ19-22X/31/N | |
| Φ 19 Two position selector switch with lamp | Two position maintained | GQ19- 11XD/21/N | |
| Φ 19 Three position selector switch with lamp | Three position maintained | GQ19-22XD/31/N | |
| Φ 19 Two position key-lock selector switch | Two position maintained | GQ19- 11Y/21/N | |
| Φ 19 Three position key-lock selector switch | Three position maintained | GQ19-22Y/31/N | |
| Metal button Socket | GQ19/GQ22selector switch、key-lock selector switch | Special socket for selector switch and key-lock selector switch(2wires) | Customizable wires length |
| Metal button Socket | GQ19/GQ22selector switch、key-lock selector switch | Special socket for selector switch and key-lock selector switch(3wires) | |
| Metal button Socket | GQ19/GQ22selector switch、key-lock selector switch | Special socket for selector switch and key-lock selector switch(4wires) | |
| Metal button Socket | GQ19/GQ22selector switch、key-lock selector switch | Special socket for selector switch and key-lock selector switch(5wires) | |
| Metal button Socket | GQ19/GQ22selector switch、key-lock selector switch | Special socket for selector switch and key-lock selector switch(6wires) | |
| Metal button Socket | GQ19/GQ22selector switch、key-lock selector switch | Special socket for selector switch and key-lock selector switch(8wires) | |
| Metal button Socket | GQ19/GQ22Emergency button | Special socket for emergency button(2线) | |
| Metal button Socket | GQ19/GQ22Emergency button | Special socket for emergency button(3线) | |
| Metal button Socket | GQ19/GQ22Emergency button | Special socket for emergency button(4线) | |
| Metal button Socket | GQ19/GQ22Emergency button | Special socket for emergency button(5线) | |
| Metal button Socket | GQ19/GQ22Emergency button | Special socket for emergency button(6线) | |
| Metal button Socket | GQ19/GQ22Emergency button | Special socket for emergency button(8线) |
Notes:
1. “/N”represents brass chrome plated housing， “/S”represents stainless steel housing.
2. Customizable color plated aluminum alloy shell，Please consult for specific prices.(Change the model suffix to“/A”)
3. GQ25、GQ30 defaults to stainless steel casing，If you need a large amount of brass chrome plated shell, you can consult for customization.
4. Packaging quantity：GQ6 is 50pcs in a box,GQ8 is 100pcs in a box,GQ10/GQ12 is 50pcs in a box,GQ16/GQ19 is 25pcs in a box,GQ22/GQ25/GQ30 is 10pcs in a box.
