Waterproof industrial IP65/IP67（Can be customized）
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
The shell material: brass clad Chromium.stainless steel
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.

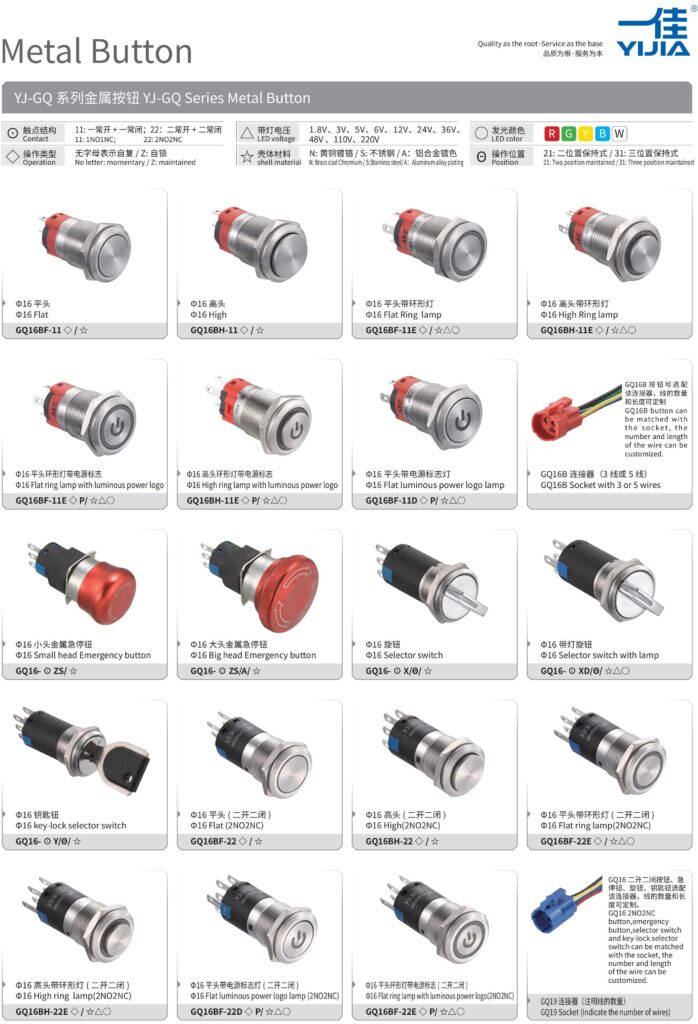

| Name | Specifications | Model | Notes |
| Φ 16 Flat momentary metal button | Short Screw terminal | GQ16F- 10/N | May make to order stainless steel housing |
| Φ 16 High momentary metal button | Short Screw terminal | GQ16H- 10/N | |
| Φ 16 Spherical momentary metal button | Short Screw terminal | GQ16B- 10/N | |
| Φ 16 Flat momentary metal button | Short pin terminal | GQ16F- 10/J/N | |
| Φ 16 High momentary metal button | Short pin terminal | GQ16H- 10/J/N | |
| Φ 16 Spherical momentary metal button | Short pin terminal | GQ16B- 10/J/N | |
| Φ 16 Flat ring lamp momentary metal button | Short pin terminal | GQ16BF- 10E/J/N | May make to order stainless steel housing customized IP67 |
| Φ 16 High ring lamp momentary metal button | Short pin terminal | GQ16BH- 10E/J/N | |
| Φ 16 Flat ring lamp momentary metal button with luminous power logo | Short pin terminal | GQ16BF- 10EP/J/N | |
| Φ 16 Flat momentary metal button | 5A current high Pin terminal | GQ16BF- 11/N | customized Bicolor lamp May make to order stainless steel housing customized IP67 |
| Φ 16 High momentary metal button | 5A current high Pin terminal | GQ16BH- 11/N | |
| Φ 16 Flat maintained metal button | 5A current high Pin terminal | GQ16BF- 11Z/N | |
| Φ 16 High maintained metal button | 5A current high Pin terminal | GQ16BH- 11Z/N | |
| Φ 16 Flat ring lamp momentary metal button | 5A current high Pin terminal | GQ16BF- 11E/N | |
| Φ 16 High ring lamp momentary metal button | 5A current high Pin terminal | GQ16BH- 11E/N | |
| Φ 16 Flat ring lamp maintained metal button | 5A current high Pin terminal | GQ16BF- 11EZ/N | |
| Φ 16 High ring lamp maintained metal button | 5A current high Pin terminal | GQ16BH- 11EZ/N | |
| Φ 16 Flat momentary metal button with luminous power logo | 5A current high Pin terminal | GQ16BF- 11DP/N | |
| Φ 16 Flat maintained metal button with luminous power logo | 5A current high Pin terminal | GQ16BF- 11DZP/N | |
| Φ 16 Flat ring lamp momentary metal button with luminous power logo | 5A current high Pin terminal | GQ16BF- 11EP/N | |
| Φ 16 Flat ring lamp maintained metal button with luminous power logo | 5A current high Pin terminal | GQ16BF- 11EZP/N | |
| GQ16B Socket | GQ16Bseries | GQ16BSocket(2wires) | Customizable wires length |
| GQ16B Socket | GQ16Bseries | GQ16BSocket(3wires) | |
| GQ16B Socket | GQ16Bseries | GQ16BSocket(4wires) | |
| GQ16B Socket | GQ16Bseries | GQ16BSocket(5wires) | |
| Φ 16 Flat momentary metal button | 2NO2NC | GQ16BF-22/N | May make to order stainless steel housing |
| Φ 16 High momentary metal button | 2NO2NC | GQ16BH-22/N | |
| Φ 16 Flat maintained metal button | 2NO2NC | GQ16BF-22Z/N | |
| Φ 16 High maintained metal button | 2NO2NC | GQ16BH-22Z/N | |
| Φ 16 Flat ring lamp momentary metal button | 2NO2NC | GQ16BF-22E/N | |
| Φ 16 High ring lamp momentary metal button | 2NO2NC | GQ16BH-22E/N | |
| Φ 16 Flat ring lamp maintained metal button | 2NO2NC | GQ16BF-22EZ/N | |
| Φ 16 High ring lamp maintained metal button | 2NO2NC | GQ16BH-22EZ/N | |
| Φ 16 Flat ring lamp momentary metal button with luminous power logo | 2NO2NC | GQ16BF-22EP/N | |
| Φ 16 Flat ring lamp maintained metal button with luminous power logo | 2NO2NC | GQ16BF-22EZP/N | |
| Φ 16 Flat momentary metal button with luminous power logo | 2NO2NC | GQ16BF-22DP/N | |
| Φ 16 Flat maintained metal button with luminous power logo | 2NO2NC | GQ16BF-22DZP/N | |
| Φ 16 Small head Emergency button | Push lock rotary release type | GQ16- 11ZS/N | |
| Φ 16 Small head Emergency button | Push lock rotary release type | GQ16-22ZS/N | |
| Φ 16 Big head Emergency button | Push lock rotary release type | GQ16- 11ZS/A/N | |
| Φ 16 Big head Emergency button | Push lock rotary release type | GQ16-22ZS/A/N | |
| Φ 16 Two position selector switch | Two position maintained | GQ16- 11X/21/N | |
| Φ 16 Three position selector switch | Three position maintained | GQ16-22X/31/N | |
| Φ 16 Two position selector switch with lamp | Two position maintained | GQ16- 11XD/21/N | |
| Φ 16 Three position selector switch with lamp | Three position maintained | GQ16-22XD/31/N | |
| Φ 16 Two position key-lock selector switch | Two position maintained | GQ16- 11Y/21/N | |
| Φ 16 Three position key-lock selector switch | Three position maintained | GQ16-22Y/31/N |
Notes:
1. “/N”represents brass chrome plated housing， “/S”represents stainless steel housing.
2. Customizable color plated aluminum alloy shell，Please consult for specific prices.(Change the model suffix to“/A”)
3. GQ25、GQ30 defaults to stainless steel casing，If you need a large amount of brass chrome plated shell, you can consult for customization.
4. Packaging quantity：GQ6 is 50pcs in a box,GQ8 is 100pcs in a box,GQ10/GQ12 is 50pcs in a box,GQ16/GQ19 is 25pcs in a box,GQ22/GQ25/GQ30 is 10pcs in a box.
