10-18A High Current
Waterproof industrial IP65
momentary / latching-cabinet latch
The shell material: brass clad Chromium.stainless steel

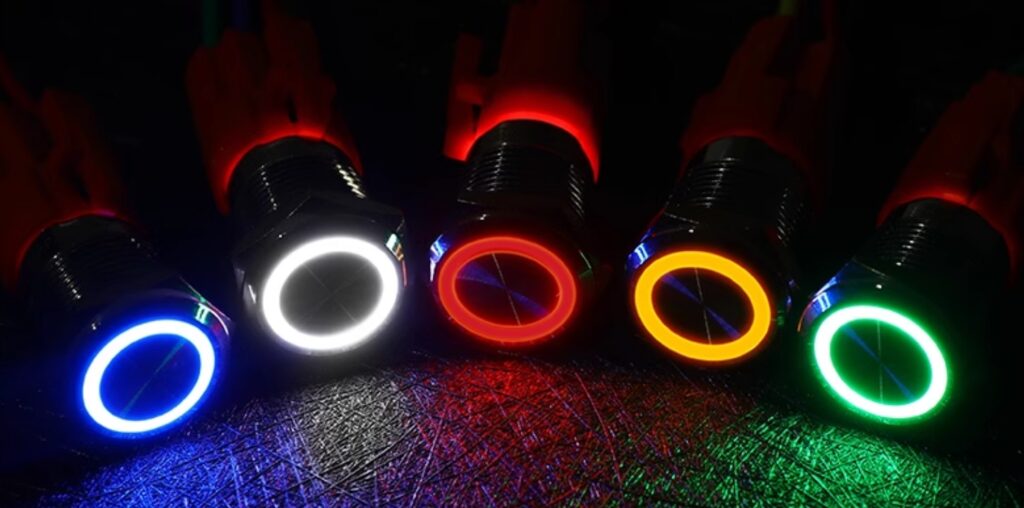

LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.

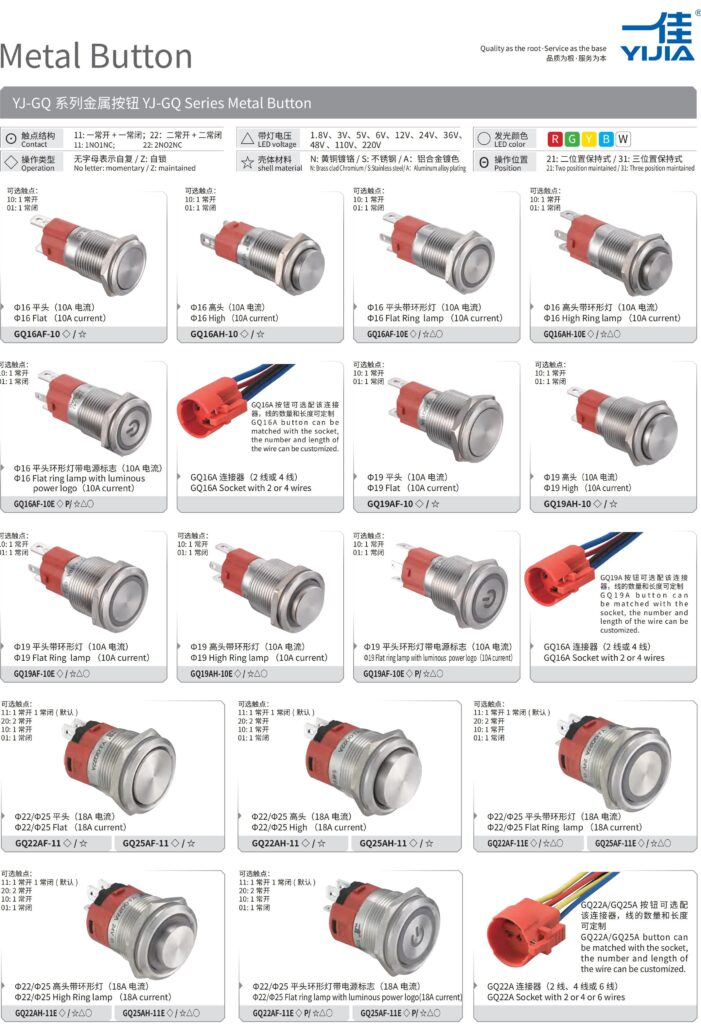

| Name | Specifications | Model | Notes |
| Φ 16 Flat momentary metal button | 10A current high Pin terminal | GQ16AF- 10/N | May make to order stainless steel housing Customizable wires length |
| Φ 16 Flat maintained metal button | 10A current high Pin terminal | GQ16AF- 10Z/N | |
| Φ 16 High momentary metal button | 10A current high Pin terminal | GQ16AH- 10/N | |
| Φ 16 High maintained metal button | 10A current high Pin terminal | GQ16AH- 10Z/N | |
| Φ 16 Flat ring lamp momentary metal button | 10A current high Pin terminal | GQ16AF- 10E/N | |
| Φ 16 Flat ring lamp maintained metal button | 10A current high Pin terminal | GQ16AF- 10EZ/N | |
| Φ 16 High ring lamp momentary metal button | 10A current high Pin terminal | GQ16AH- 10E/N | |
| Φ 16 High ring lamp maintained metal button | 10A current high Pin terminal | GQ16AH- 10EZ/N | |
| Φ 16 Flat ring lamp momentary metal button with luminous power logo | 10A current high Pin terminal | GQ16AF- 10EP/N | |
| Φ 16 Flat ring lamp maintained metal button with luminous power logo | 10A current high Pin terminal | GQ16AF- 10EZP/N | |
| GQ16A Socket | GQ16A\GQ19A Series | GQ16A Socket with 2 wires | |
| GQ16A Socket | GQ16A\GQ19A Series | GQ16A Socket with 4 wires | |
| Φ 19 Flat momentary metal button | 10A current high Pin terminal | GQ19AF- 10/N | May make to order stainless steel housing |
| Φ 19 Flat maintained metal button | 10A current high Pin terminal | GQ19AF- 10Z/N | |
| Φ 19 High momentary metal button | 10A current high Pin terminal | GQ19AH- 10/N | |
| Φ 19 High maintained metal button | 10A current high Pin terminal | GQ19AH- 10Z/N | |
| Φ 19 Flat ring lamp momentary metal button | 10A current high Pin terminal | GQ19AF- 10E/N | |
| Φ 19 Flat ring lamp maintained metal button | 10A current high Pin terminal | GQ19AF- 10EZ/N | |
| Φ 19 High ring lamp momentary metal button | 10A current high Pin terminal | GQ19AH- 10E/N | |
| Φ 19 High ring lamp maintained metal button | 10A current high Pin terminal | GQ19AH- 10EZ/N | |
| Φ 19 Flat ring lamp momentary metal button with luminous power logo | 10A current high Pin terminal | GQ19AF- 10EP/N | |
| Φ 19 Flat ring lamp maintained metal button with luminous power logo | 10A current high Pin terminal | GQ19AF- 10EZP/N | |
| Φ 22 Flat momentary metal button | 18A current | GQ22AF- 11/N | May make to order stainless steel housing Customizable; 11(1NO1NC)、 20(2NO)、 02(2NC)、 10(1NO)、 01(1NC)； customized IP67 |
| Φ 22 Flat maintained metal button | 18A current | GQ22AF- 11Z/N | |
| Φ 22 High momentary metal button | 18A current | GQ22AH- 11/N | |
| Φ 22 High maintained metal button | 18A current | GQ22AH- 11Z/N | |
| Φ 22 Flat ring lamp momentary metal button | 18A current | GQ22AF- 11E/N | |
| Φ 22 Flat ring lamp maintained metal button | 18A current | GQ22AF- 11EZ/N | |
| Φ 22 High ring lamp momentary metal button | 18A current | GQ22AH- 11E/N | |
| Φ 22 High ring lamp maintained metal button | 18A current | GQ22AH- 11EZ/N | |
| Φ 22 Flat ring lamp momentary metal button with luminous power logo | 18A current | GQ22AF- 11EP/N | |
| Φ 22 Flat ring lamp maintained metal button with luminous power logo | 18A current | GQ22AF- 11EZP/N | |
| GQ22A Socket | 6 wires | GQ22A- 1NO1NClamp wires or GQ22A-2NOlamp wires | Customizable wires length |
| GQ22A Socket | 4 wires | GQ22A- 1NOlamp wires or GQ22A- 1NClamp wires | |
| GQ22A Socket | 4 wires | GQ22A- 1NO1NC or GQ22A-2NO | |
| GQ22A Socket | 2 wires | GQ22A- 1NO or GQ22A- 1NC | |
| GQ22A Socket accessory | please consult | please consult | |
| Φ 25 Flat momentary metal button | 18A current | GQ25AF- 11/S | Customizable; 11(1NO1NC)、 20(2NO)、 02(2NC)、 10(1NO)、 01(1NC)； |
| Φ 25 Flat maintained metal button | 18A current | GQ25AF- 11Z/S | |
| Φ 25 High momentary metal button | 18A current | GQ25AH- 11/S | |
| Φ 25 High maintained metal button | 18A current | GQ25AH- 11Z/S | |
| Φ 25 Flat ring lamp momentary metal button | 18A current | GQ25AF- 11E/S | |
| Φ 25 Flat ring lamp maintained metal button | 18A current | GQ25AF- 11EZ/S | |
| Φ 25 High ring lamp momentary metal button | 18A current | GQ25AH- 11E/S | |
| Φ 25 High ring lamp maintained metal button | 18A current | GQ25AH- 11EZ/S | |
| Φ 25 Flat ring lamp momentary metal button with luminous power logo | 18A current | GQ25AF- 11EP/S | |
| Φ 25 Flat ring lamp maintained metal button with luminous power logo | 18A current | GQ25AF- 11EZP/S |
