Waterproof industrial
momentary / latching-cabinet latch
The shell material: brass clad Chromium.stainless steel
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.

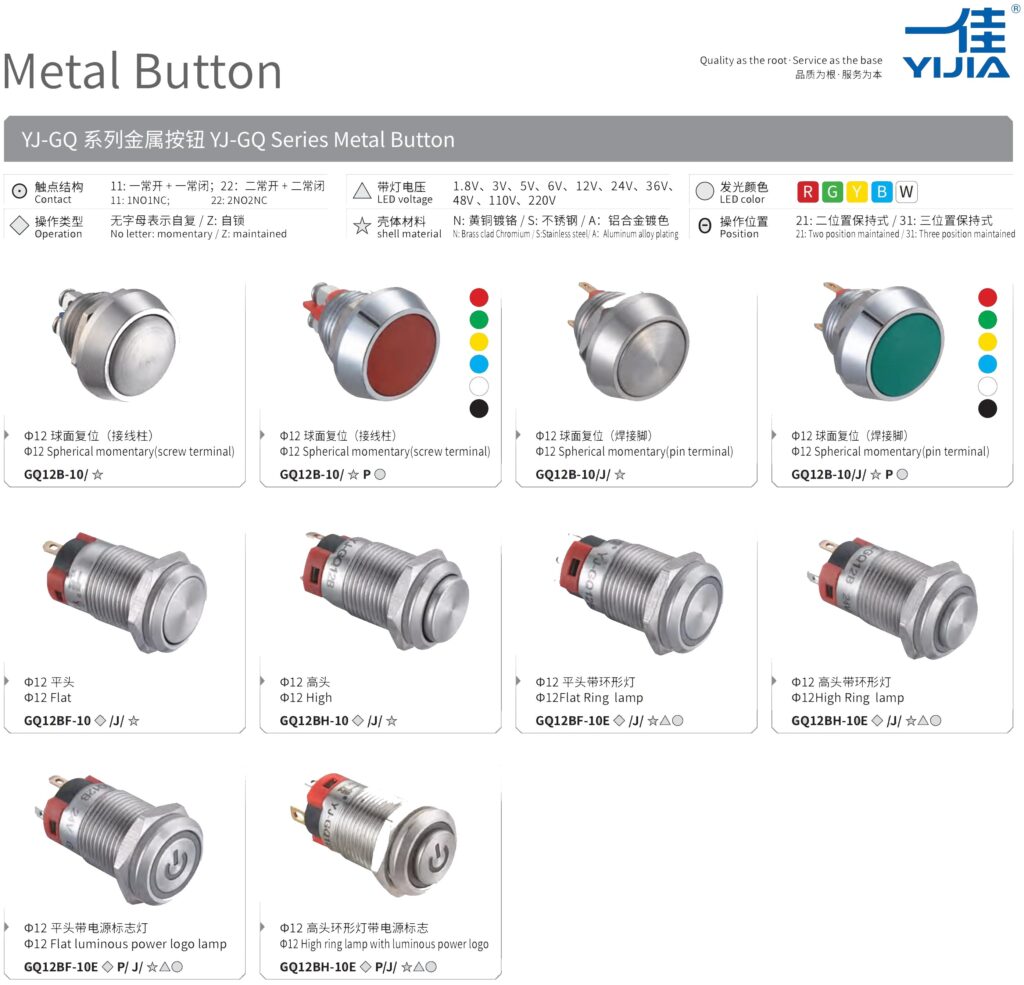

| Name | Specifications | Model | Notes |
| Φ 12 Spherical momentary metal button | Metal Keypad，screw terminal | GQ12B- 10/N | May make to order stainless steel housing |
| Φ 12 Spherical momentary metal button | Colored plastic keypad，screw terminal | GQ12B- 10/NP | |
| Φ 12 Spherical momentary metal button | Metal Keypad，pin terminal | GQ12B- 10/J/N | |
| Φ 12 Spherical momentary metal button | Colored plastic keypad，pin terminal | GQ12B- 10/J/NP | |
| Φ 12 Flat momentary metal button | pin terminal | GQ12BF- 10/J/N | May make to order stainless steel housing |
| Φ 12 High momentary metal button | pin terminal | GQ12BH- 10/J/N | |
| Φ 12 Flat maintained metal button | pin terminal | GQ12BF- 10Z/J/N | |
| Φ 12 High maintained metal button | pin terminal | GQ12BH- 10Z/J/N | |
| Φ 12 Flat ring lamp momentary metal button | pin terminal | GQ12BF- 10E/J/N | |
| Φ 12 High ring lamp momentary metal button | pin terminal | GQ12BH- 10E/J/N | |
| Φ 12 Flat ring lamp maintained metal button | pin terminal | GQ12BF- 10EZ/J/N | |
| Φ 12 High ring lamp maintained metal button | pin terminal | GQ12BH- 10EZ/J/N | |
| Φ 12 Flat ring lamp momentary metal button with luminous power logo | pin terminal | GQ12BF- 10EP/J/N | |
| Φ 12 Flat ring lamp maintained metal button with luminous power logo | pin terminal | GQ12BF- 10EZP/J/N |
