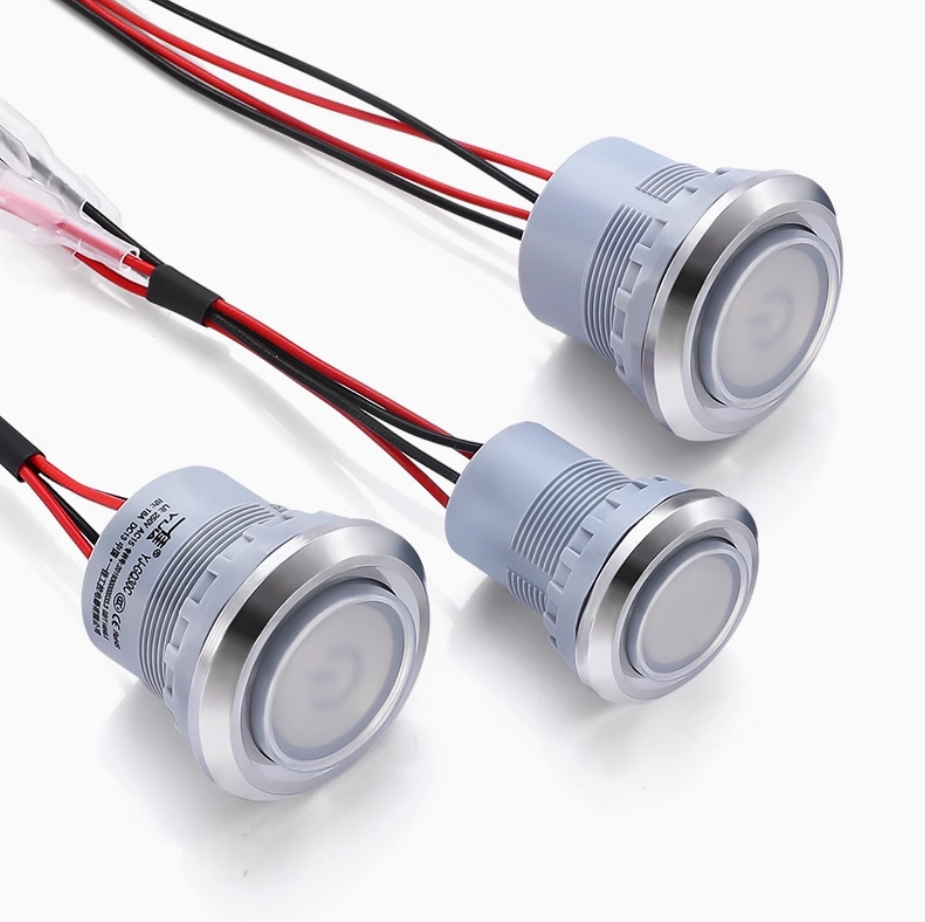

Waterproof industrial IP67
momentary / latching-cabinet latch
The shell material: brass clad Chromium.stainless steel
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.

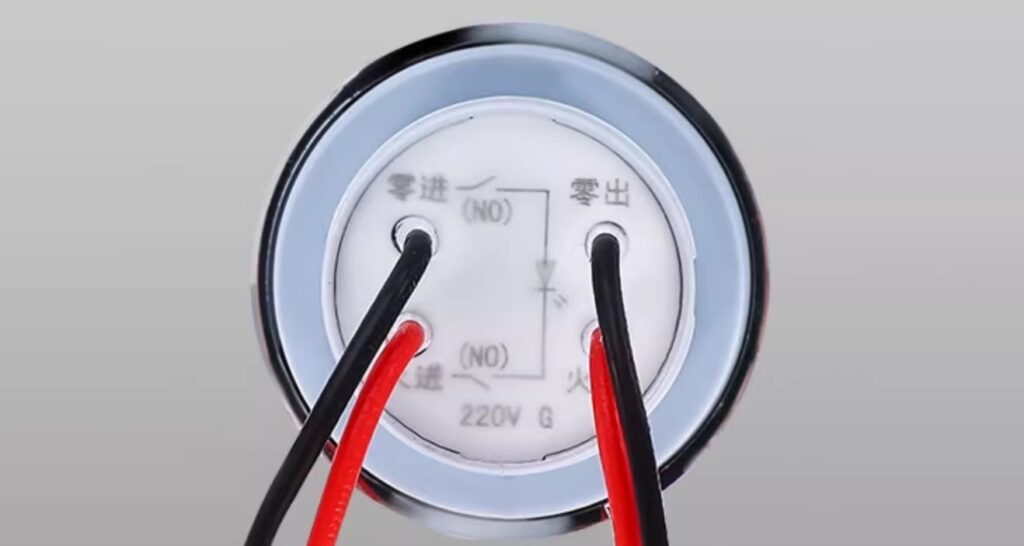

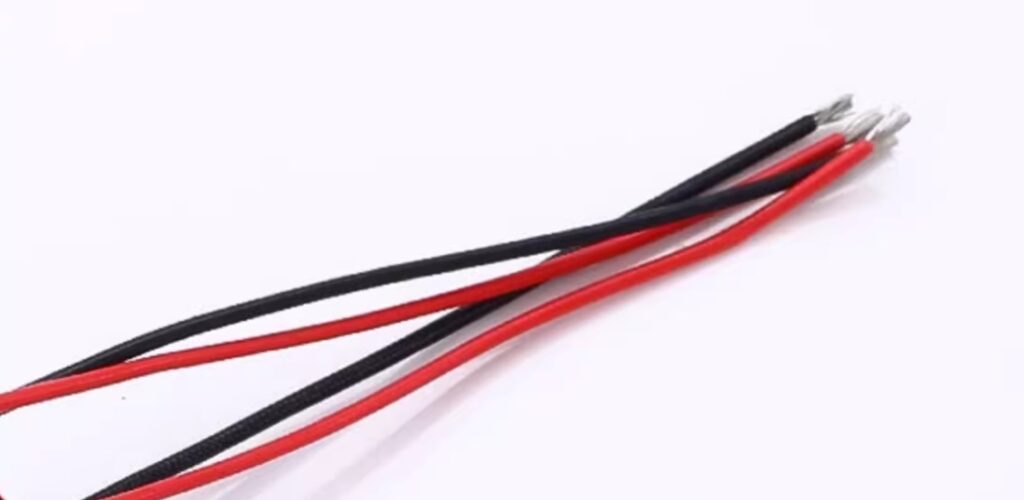

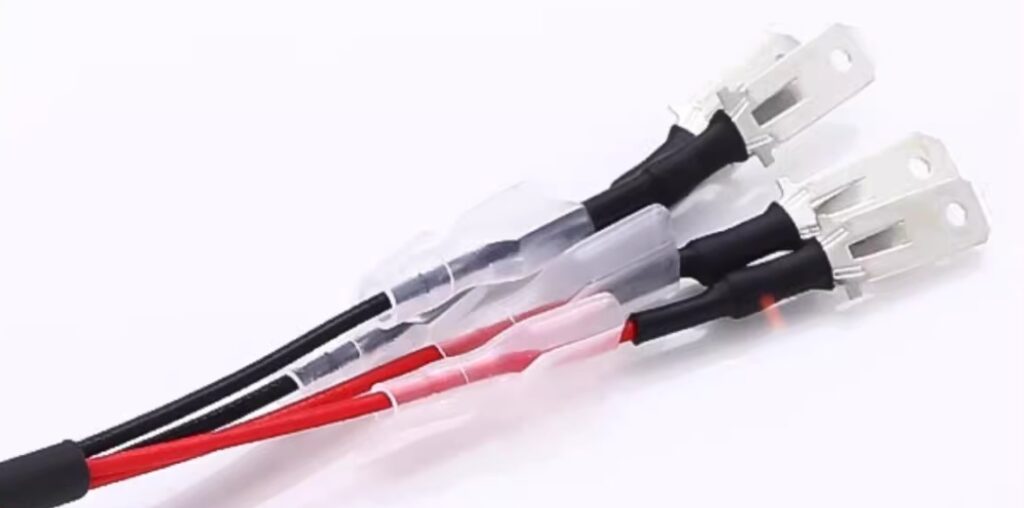

Two options for tail terminals
| Name | Specifications | Model | Notes |

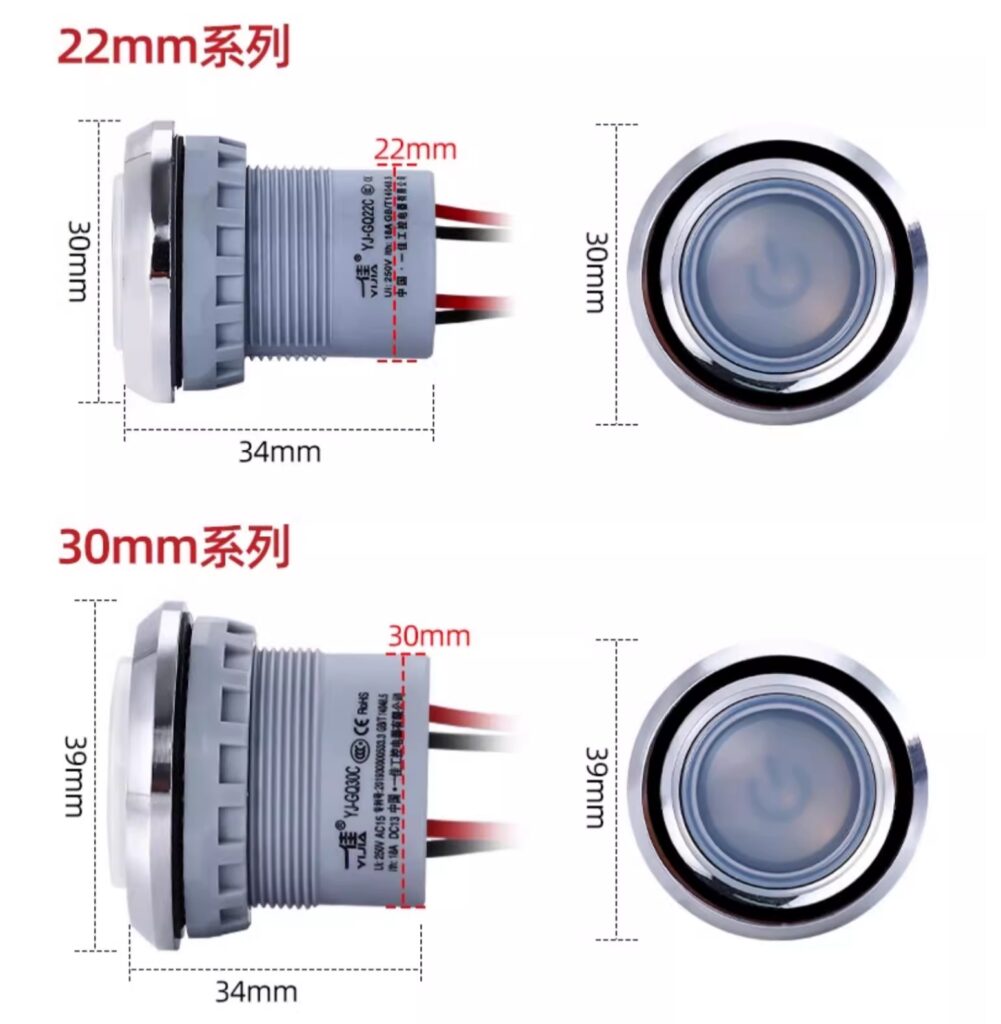

| Φ 22 ring lamp momentary metal button with luminous power logo | Waterproof sealing cover | GQ22C-20EP/P/F/A | Detailed questions please contact customer service online |
| Φ 22 ring lamp maintained metal button with luminous power logo | Waterproof sealing cover | GQ22C-20EZP/P/F/A | |
| Φ 22 ring lamp momentary metal button with luminous power logo | Waterproof sealing cover | GQ22C-20EP/N/F/A | |
| Φ 22 ring lamp maintained metal button with luminous power logo | Waterproof sealing cover | GQ22C-20EZP/N/F/A | |
| Φ 30 ring lamp momentary metal button with luminous power logo | Waterproof sealing cover | GQ30C-20EP/P/F/A | |
| Φ 30 ring lamp maintained metal button with luminous power logo | Waterproof sealing cover | GQ30C-20EZP/P/F/A | |
| Φ 30 ring lamp momentary metal button with luminous power logo | Waterproof sealing cover | GQ30C-20EP/N/F/A | |
| Φ 30 ring lamp maintained metal button with luminous power logo | Waterproof sealing cover | GQ30C-20EZP/N/F/A | |
| Φ 30 ring lamp momentary metal button with luminous power logo | Waterproof sealing cover | GQ30C-20EP/S/F/A | |
| Φ 30 ring lamp maintained metal button with luminous power logo | Waterproof sealing cover | GQ30C-20EZP/S/F/A |
