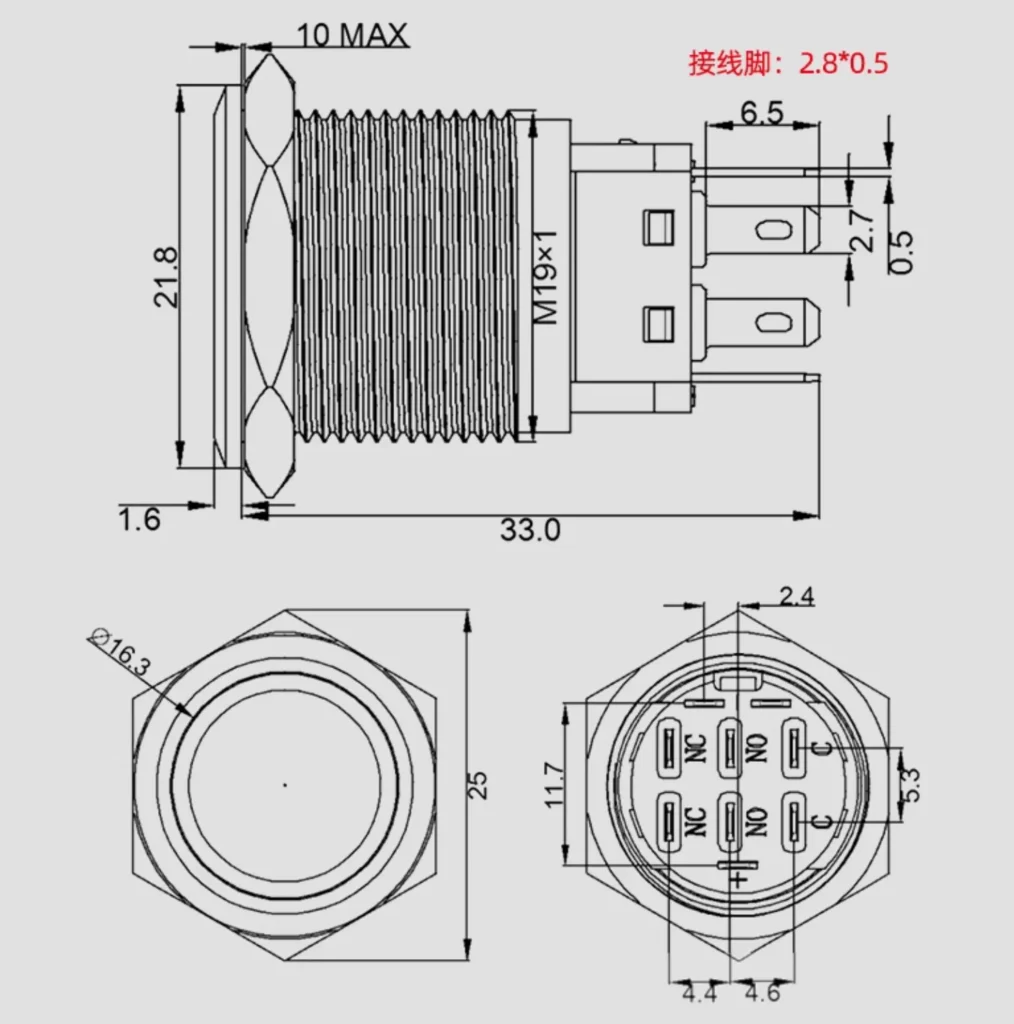

Installation dimensions: φ19MM
Current: 5A/10A/15A/18A
Operation: momentary / latching-cabinet latch
IP degree: lP65 (waterproof industrial push button switch)
The shell material: brass clad Chromium/stainless steel

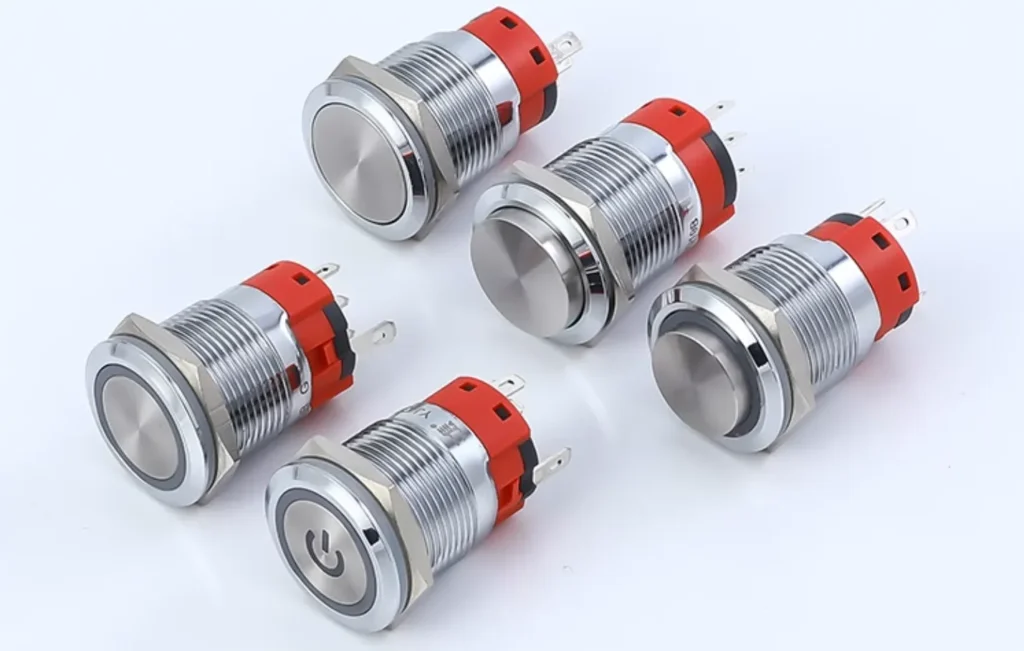

Want to know more about the product: Metal Push Button Switch

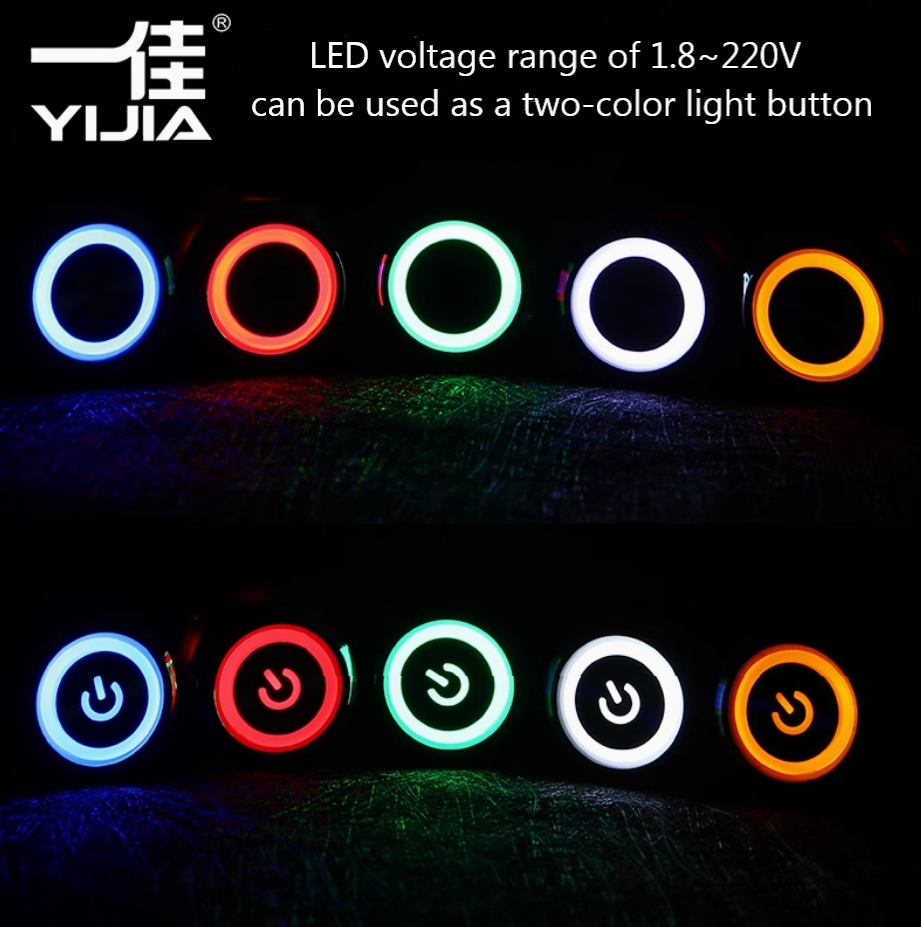

Metal button switch LED indicator light power on effect diagram.
LED lights are available in red, green, blue, yellow, and white for selection.
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
In modern industrial production, push button switches are not only the basic components of equipment control, but also the key components to ensure production safety and improve work efficiency.
Yijia Industrial Control’s 19mm metal push button switch plays an irreplaceable role in various industrial environments with its excellent performance and reliable quality.
Product Application Scenarios
Distribution Box Control System
The distribution box is the core component of the industrial electrical system, and the push button switch is the most common control component in the distribution box.
In the distribution box, Yijia Industrial Control’s push button switch is mainly used to remotely control the on and off of the circuit to achieve the connection or disconnection of the main power supply circuit.
These switches are usually installed on the door panel of the distribution box to provide operators with an intuitive and convenient control interface.
In the application of the distribution box, the waterproof performance of the push button switch is particularly important.
Yijia Industrial Control’s IP65 protection level ensures the reliable operation of the switch in a humid environment and effectively prevents moisture and dust from damaging the internal circuit.
This high protection level design enables the switch to adapt to various harsh industrial environments.
Automation Equipment Control
In industrial automation systems, push button switches are widely used to control the start and stop of equipment, adjust parameters, and switch modes.
Yijia Industrial Control’s push button switches have two operating modes: instantaneous and self-locking, which can meet the control needs of different automation equipment.
The instantaneous mode is suitable for temporary control operations, while the self-locking mode is suitable for occasions where the state needs to be maintained.
On the automated production line, these push button switches are used to start and stop machine operation to ensure the safety and efficiency of the production process.
Operators can control complex mechanical equipment with a simple press, which greatly improves the convenience and safety of operation.
Mechanical Equipment Operation Panel
In various types of mechanical equipment, push button switches are an important part of the operation panel.
Yijia Industrial Control’s metal push button switches have excellent durability and reliability, and can withstand frequent operations and harsh working environments.
These switches are commonly used in the control systems of various industrial machinery such as machine tools, lifting equipment, and conveying equipment.
The LED indicator function provides clear status feedback for operators.
Five colors of LED lights (red, green, blue, yellow, and white) can be selected according to different application requirements to help operators quickly identify the working status of the equipment.
This visual feedback function is especially important in working environments with insufficient light.
Product Function
Circuit Control and Protection
The basic function of the push button switch is to control the on and off of the circuit and realize the start and stop control of electrical equipment.
Yijia Industrial Control’s push button switch supports different current specifications from 5A to 18A, which can adapt to the control requirements of equipment of various power levels.
This diverse current selection ensures the compatibility of the product in different application scenarios.
In industrial applications, push button switches also bear important safety protection functions.
Especially in emergency situations, operators can immediately cut off the power supply of the equipment by pressing the emergency stop button to prevent accidents.
This rapid response capability is of great significance to ensure personnel safety and equipment protection.
Signal Transmission and Status Indication
In addition to the basic switch function, Yijia Industrial Control’s push button switch also has signal transmission capabilities.
Different command signals can be sent to the control system through different pressing methods and durations.
This intelligent control method improves the flexibility and responsiveness of the system.
The LED indicator function provides intuitive visual feedback for equipment status monitoring.
The operator can judge the operation of the equipment by observing the color and status of the indicator light, timely discover potential problems and take corresponding measures.
This real-time monitoring capability plays an important role in improving production efficiency and equipment reliability.
Advantages of Yijia Industrial Control Products
Material Quality Advantages
Yijia Industrial Control’s push button switches are made of high-quality metal materials, including brass chrome plating and stainless steel shell materials.
Stainless steel has excellent corrosion resistance and wear resistance, and the surface always maintains a silver-white luster and never rusts.
The hardness and toughness of this material are more than twice that of brass, ensuring the long-term stable operation of the product.
Although the cost of brass chrome plating is lower, it also has good conductivity and mechanical strength.
This material selection provides customers with more cost control options to meet applications with different budget requirements.
Protection Performance Advantages
IP65 protection level is an important technical advantage of Yijia Industrial Control push button switches.
This protection level means that the product is completely dustproof and can prevent water impact from all directions.
In industrial environments, equipment is often threatened by dust, moisture and other contaminants, and a high protection level ensures the reliable operation of the switch.
Waterproof performance is particularly important for outdoor applications and humid environments.
Yijia Industrial Control’s push button switches can maintain stable electrical performance under harsh environmental conditions, reducing failures and maintenance requirements caused by environmental factors.
Technical Specification Advantages
Yijia Industrial Control push button switches provide a wide range of technical specifications to meet different application requirements.
The 19mm installation size is compactly designed to save installation space while ensuring sufficient operating area.
A variety of current specifications (5A/10A/15A/18A) ensure the applicability of the product in applications with different power levels.
The LED indicator supports a variety of voltage specifications, and the wide voltage range from 1.8V to 220V covers most industrial application requirements.
This flexible voltage adaptation capability simplifies system design and reduces the difficulty of customer selection.
Advantages of convenient operation
The two operation modes of momentary and self-locking provide users with flexible control options.
The momentary mode is suitable for temporary control operations, such as jog debugging and emergency stop; the self-locking mode is suitable for applications that need to maintain the state, such as the start and stop control of the equipment.
This diverse operation mode improves the applicability and user experience of the product.
The precision design of the metal button ensures a good operating feel and reliable mechanical performance.
Even in a high-frequency operating environment, the push button switch can maintain stable performance and extend the service life of the product.
Yijia Industrial Control’s 19mm metal push button switch has established a good brand image in the field of industrial control with its excellent quality, reliable performance and rich functions.
Whether in distribution boxes, automation equipment or mechanical operation panels, these push button switches can provide users with safe, reliable and efficient control solutions.
