Yijia Metal Push Button Switch YJ-GQ16B (2NO2NC) Application Solution

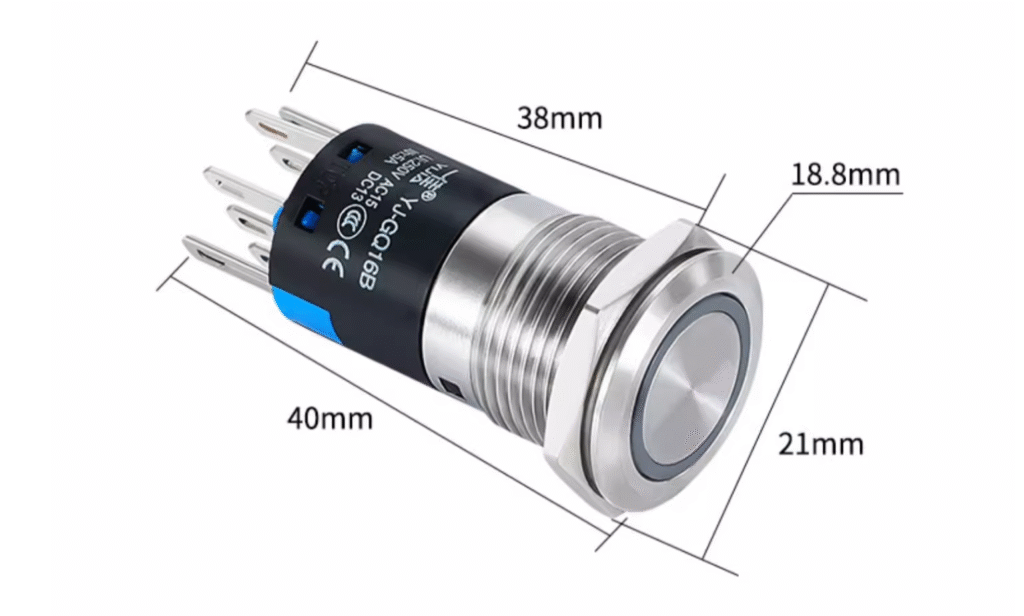

YJ-GQ16B (2NO2NC) metal push button switch 2

Installation dimensions: φ16MM
Current: 5A/10A/15A/18A
Operation: momentary / latching-cabinet latch
IP degree: lP65 (waterproof industrial push button switch)
The shell material: brass clad Chromium/stainless steel

Want to know more about the product: Metal Push Button Switch

YJ-GQ16B (2NO2NC) metal push button switch

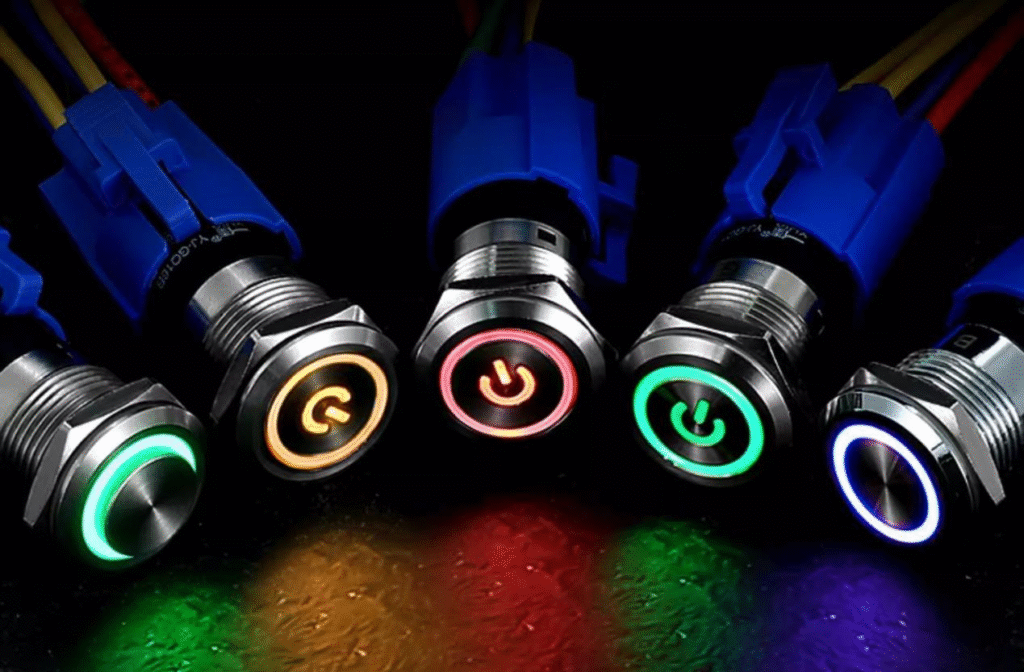

Metal button switch LED indicator light power on effect diagram.

LED lights are available in red, green, blue, yellow, and white for selection.

The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.

YJ-GQ16B (2NO2NC) metal push button switch 1

With the continuous advancement of automation and intelligent technology, industrial and consumer equipment increasingly demand reliability and safety in control components. Metal push button switches, known for their sturdiness, durability, and excellent electrical performance, are widely used in machinery manufacturing, transportation, medical equipment, and other fields.

Yijia Industrial Control has launched the YJ-GQ16B (2NO2NC) metal push button switch, providing efficient and reliable control solutions for various industries through outstanding performance and versatile application adaptability.

Product Application Scenarios

The YJ-GQ16B series metal push button switch is designed and manufactured with consideration of multi-industry working conditions, suitable for various complex or harsh environments:

🏭 Industrial Automation Equipment
Widely used in production line control, motor start/stop, robot operation units, and other automation scenarios, the YJ-GQ16B ensures long-term stable operation even in severe factory environments thanks to its dustproof and waterproof protection (up to IP67). The 2NO2NC composite contact design fits complex control circuits, enabling redundancy or dual-signal control to enhance system safety and flexibility.

🚨 Industrial Safety and Emergency Stop Systems
Used as safety interlock or emergency stop buttons, it can cut off power or trigger alarms instantly during abnormal conditions. The high-strength stainless steel housing resists impact and corrosion, preventing accidental operation or external damage, ensuring personnel and equipment safety.

🚍 Transportation and Transit Equipment
Widely applied in subways, buses, airport security checkpoints, and other public transportation facility control panels, elevator control panels, and access control systems. Its impact resistance and anti-vandalism features ensure normal operation under frequent use and harsh public environments, improving maintenance efficiency.

⚕️Medical and Instrumentation Equipment
In medical instruments and testing devices requiring hygiene and precise control, the YJ-GQ16B employs high-quality stainless steel or aluminum alloy housing, facilitating cleaning and disinfection. With an electrical lifecycle exceeding 1 million operations, it meets the high-frequency operation demands of medical devices.

🏧 Public Self-Service Terminals and Control Consoles
Used in banking, subway, toll booths, and self-service ticket machines, its wear-resistant and corrosion-resistant design extends device service life, effectively coping with high-frequency usage and external mechanical stresses in public places.

GQ16B(2NO2NC)High ring lamp

Product Features

Multiple Contact Configurations
Supports 2NO2NC (double normally open and double normally closed) functionality, enabling multi-circuit independent control to enhance system safety and redundancy.

Strong Durability
Made of premium stainless steel, brass with chrome plating, or other metals; robust housing resists impact; electrical life exceeds 200,000 cycles; mechanical life surpasses 1 million cycles.

High Protection Level
Supports IP65 to IP67 protection ratings, dust-proof and waterproof, suitable for outdoor, high humidity, and dusty environments.

Variety of Sizes and Lighting Options
Multiple button diameters (e.g., 16mm) are available. Supports LED ring or single point illumination with voltage range options from 1.8V to 36V.

Comfortable Tactile Feedback
Moderate press force with clear feedback facilitates precise operation by users.

Easy Installation and Maintenance
Standardized mounting hole design, diverse terminal options (screw, solder, plug), simplifying wiring and replacement.

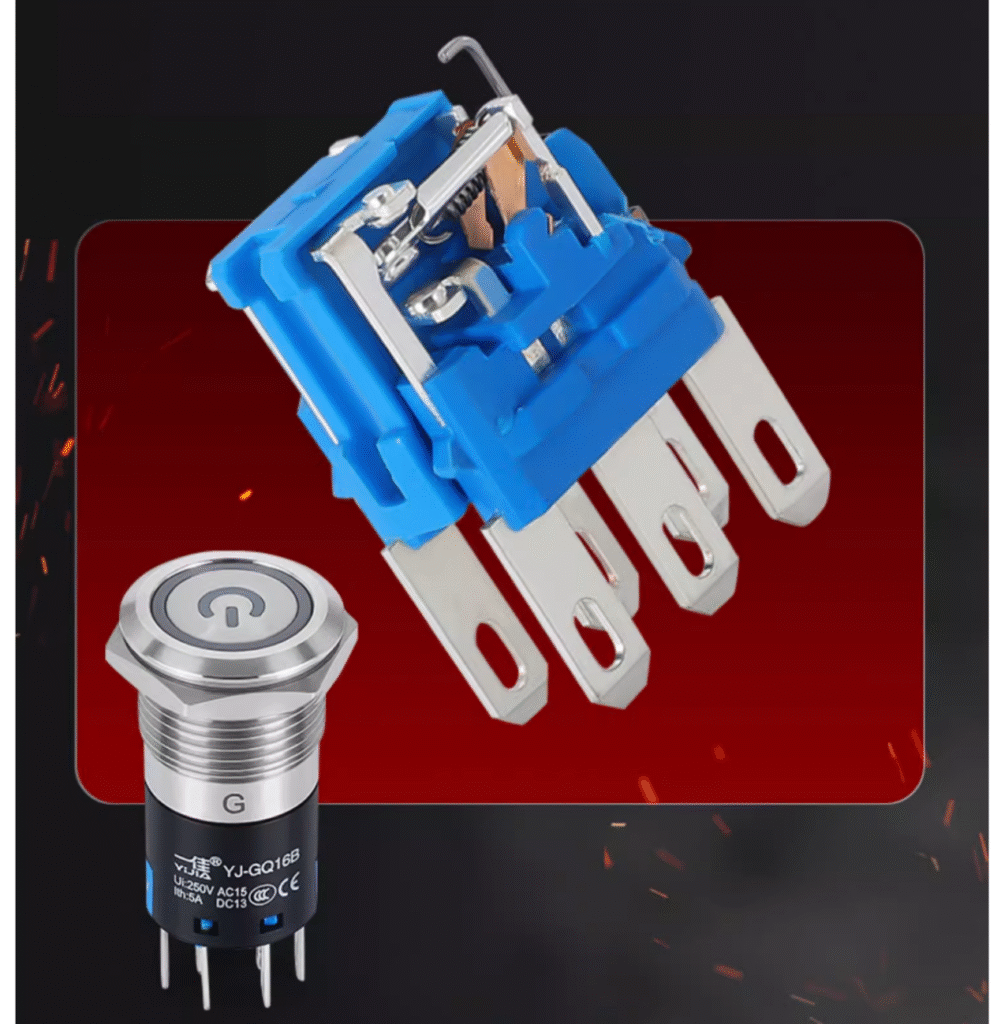

YJ-GQ16B (2NO2NC) metal push button switch 3

Advantages of Yijia Industrial Control Products

👉Wide Product Range and Customization Capability
Yijia offers a rich variety of push button switches, indicator lights, relays, and low-voltage electrical products with customization options tailored to different usage scenarios, including color, marking, and voltage requirements.

👉Strong Production and Manufacturing Capability
All products comply with CE and RoHS international standards, ensuring strict quality control and combining durability, aesthetics, and safety.

👉Smart Compatibility and Comprehensive Solutions
Products are compatible with various automation systems and can be part of integrated electrical control solutions serving industries like CNC machinery, automated production lines, elevators, food processing, and wind power.

👉Comprehensive After-Sales Service
Providing technical selection, installation guidance, and one-on-one after-sales support to guarantee continuous and stable operation of customers’ equipment.

FAQ

What voltage and current is the YJ-GQ16B metal push button switch suitable for?

Typically rated at 5A/250VAC, with LED indicator voltages ranging from 1.8V to 36V.

Is the button waterproof? Does it have dust protection?

The product supports IP65 and above protection levels, suitable for outdoor or high humidity and dusty environments.

What is the product’s lifespan?

Mechanical lifespan exceeds 1 million cycles, and electrical lifespan exceeds 200,000 cycles, meeting high-intensity industrial usage requirements.

Is installation and wiring complicated?

Standard 16mm mounting hole with screw or plug-type terminals enables quick and easy installation and maintenance.

What should I do if the button is damaged?

It is recommended to first inspect and troubleshoot the circuit or the switch itself. If damaged, replace it with the original manufacturer’s same model. Customers purchasing Yijia products can receive dedicated after-sales support.

Can the product be customized?

Yijia can customize parameters such as button color, markings, voltage, and light rings according to customer needs to enhance device recognition and user experience.
