Installation dimensions: φ16MM
Current: 5A/10A/15A/18A
Operation: momentary / latching-cabinet latch
IP degree: lP65 (waterproof industrial push button switch)
The shell material: brass clad Chromium/stainless steel
Want to know more about the product: Metal Push Button Switch

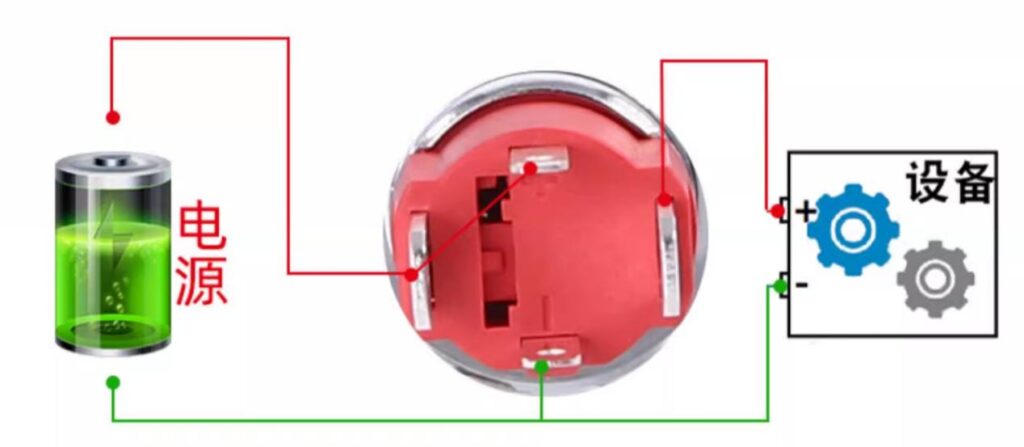

Metal button switch LED indicator light power on effect diagram.
LED lights are available in red, green, blue, yellow, and white for selection.
The voltage of the lamp includes: 1.8V,3V,5V,6V,12V,24V,36V,48V,110V,220V.
In today’s era of industrial automation and smart devices, a button is more than just an “on/off” switch. It is the most direct communication bridge between humans and machines. A well-designed, reliable button can greatly enhance equipment safety, ease of operation, and service life.

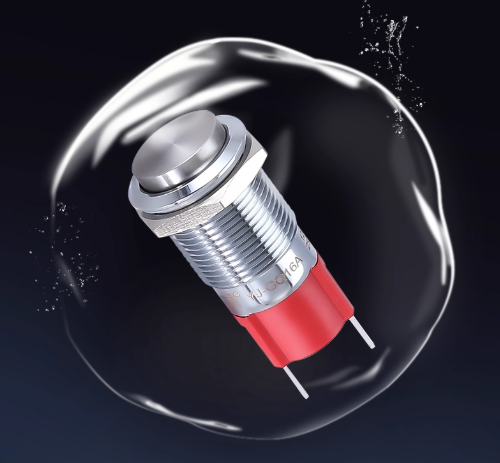

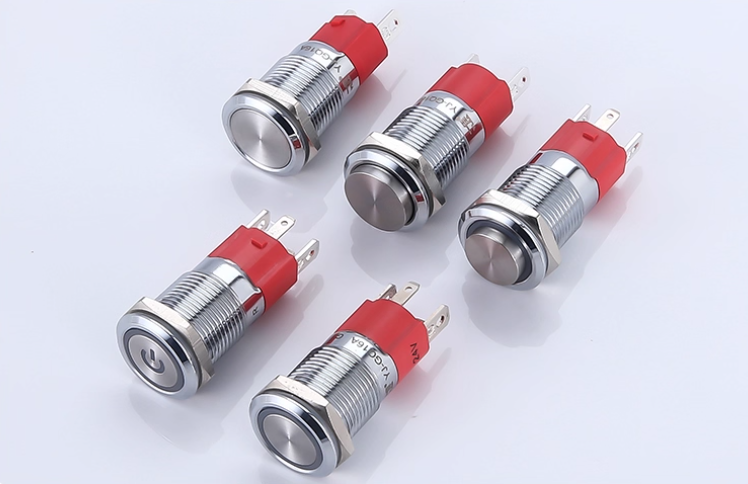

The YJ-GQ16A is such a metal push button switch that combines durability with intelligent indication, specially crafted to meet modern industrial and smart control needs.
Product Application Scenarios
Factory Automation and Production Line Control
Equipment Start and Stop Control
In assembly lines such as automobile manufacturing and electronics assembly, the YJ-GQ16A serves as the start and stop button, providing precise control. Its built-in LED lights display equipment status in real-time, preventing misoperation and ensuring smooth production.
Emergency Stop Safety Assurance
What if an emergency occurs during production? The emergency stop button is crucial. The YJ-GQ16A’s high protection rating (IP65) ensures the button remains sensitive and reliable even in harsh environments. When pressed, the LED instantly changes color as a clear alert, protecting personnel and equipment.
Fault Diagnosis and Reset
When equipment malfunctions, maintenance personnel can quickly reset it using the button. The LED indicator helps identify the device status, significantly reducing downtime.
Quality Inspection Assistance
The button is used to trigger sampling inspections, with LED lights showing inspection progress, ensuring stable product quality.
Medical Equipment Control
Surgical devices require precise and safe operation. The YJ-GQ16A, with its fast response and waterproof/dustproof design (IP65), is an ideal choice for operating tables and medical instruments, ensuring smooth medical procedures.
Smart Access Control and Security Systems
In smart locks and access control systems, the YJ-GQ16A not only acts as a switch but also uses multicolor LED lights to indicate lock status, enhancing user experience and security. Its sturdy metal casing offers excellent tamper resistance, suitable for high-security scenarios.
Automated Machinery and Robotics
Industrial robot control panels require frequent and precise operation. The YJ-GQ16A’s high mechanical lifespan (over 1 million cycles) and shock-resistant design ensure long-term stable performance. Multiple operation modes meet different control needs.
Other Diverse Applications
- Instruments and meters
- Distribution boxes and control cabinets
- CNC machine tools
Whether for precision instruments or large equipment, the YJ-GQ16A performs reliably, adapting to various installation environments and working conditions.
Product Features and Technical Advantages
| Feature | Description |
|---|---|
| Durable Metal Structure | The casing is made of stainless steel or aluminum alloy, corrosion-resistant and impact-resistant, suitable for harsh industrial environments. |
| Built-in Multicolor LED Indicator | Available in red, green, blue, etc., showing switch status in real-time for intuitive operation and reduced errors. |
| Multiple Operation Modes | Supports momentary (self-reset) and latching (self-locking) modes, flexibly meeting different scenarios. |
| High Protection Level | IP65 dustproof and waterproof, resisting dust and water spray, suitable for outdoor and humid environments. |
| Modular Design | Easy installation, compatible with various panel thicknesses and wiring methods, facilitating maintenance and replacement. |
| Long Service Life | Mechanical life exceeds 1 million cycles, electrical life over 100,000 cycles, LED lifespan lasts tens of thousands of hours. |
| Wide Voltage Compatibility | Rated voltage ranges from 3V to 220V, rated current up to 5A, meeting diverse industrial electrical needs. |
| High-Temperature Soldering Resistance | Can withstand 320℃ high-temperature soldering without performance degradation. |
Advantages of Yijia Industrial Control Products
| Advantage Category | Specific Performance |
|---|---|
| Quality Certification | Products have passed CE, CCC, RoHS, and other international certifications, ensuring stable and reliable quality. |
| Innovative R&D | Continuous technological innovation, rich product lines, meeting diverse industrial control demands. |
| Wide Applicability | Products widely used in power, machinery, automation, new energy, robotics, and other industries. |
| Strong Durability | Made of high-quality materials with excellent corrosion and impact resistance, suitable for harsh environments. |
| Easy Installation | Modular design supports multiple installation methods, making maintenance simple and fast. |
| Comprehensive Service | Professional pre-sales and after-sales teams provide quick responses and support customized solutions. |
Why Choose YJ-GQ16A?
You might ask, “There are so many buttons on the market, why pick this one?” Here are several reasons:
- Safety First: IP65 protection and sturdy metal casing ensure reliable operation in harsh environments, protecting operators and equipment.
- Simple Operation: Built-in LED lights make status clear at a glance, reducing mistakes and boosting efficiency.
- Durability: Over a million mechanical cycles and long-lasting LEDs reduce replacement frequency and maintenance costs.
- Flexible Options: Multiple colors, sizes, and operation modes meet various industrial and smart device needs.
- Professional Assurance: Yijia Industrial Control’s quality certifications and excellent service give you peace of mind.
Though small, a button is the “heart” of equipment; every press carries safety and efficiency. The Yijia Metal Push Button Switch YJ-GQ16A, with its outstanding performance and wide applications, has become a star product in industrial automation and smart control. Whether you are a factory engineer, equipment maintenance expert, or smart home enthusiast, this button will bring you peace of mind and convenience.
Next time you press a button on smoothly running equipment, remember the precise design and solid quality behind it. Ready to let the YJ-GQ16A be your equipment’s “guardian”? Let’s start a new chapter in intelligent control together!
