Installation dimensions:22MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.
| Name | Specifications | Model | Notes |

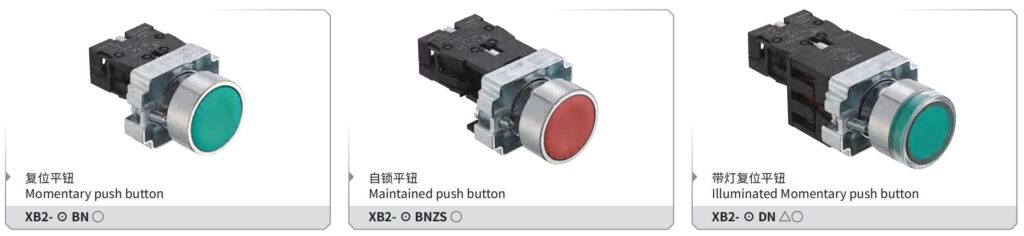

| Momentary push button | Flat push button | XB2- 10BN | 1NO |
| Momentary push button | Flat push button | XB2-01BN | 1NC |

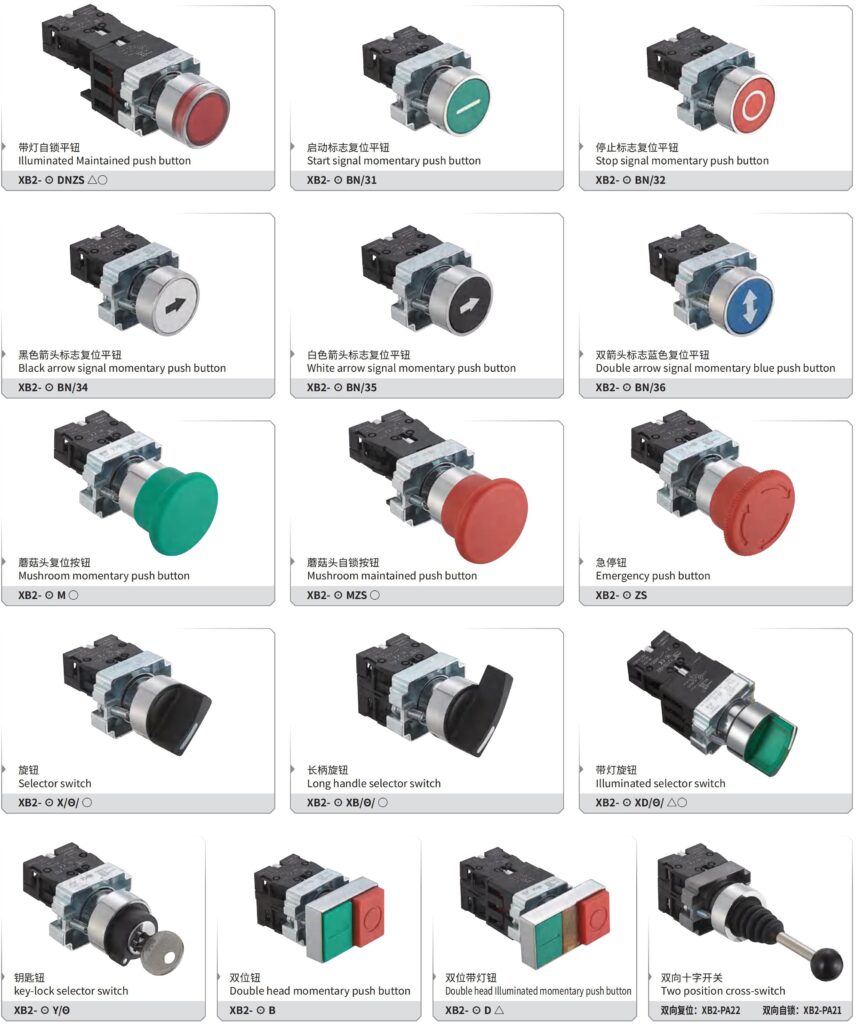

| Start signal momentary push button | Flat push button | XB2- 10BN/31 | 1NO |
| Stop signal momentary push button | Flat push button | XB2-01BN/32 | 1NC |
| Black arrow signal momentary push button | Flat push button | XB2- 10BN/34 | 1NO |
| White arrow signal momentary push button | Flat push button | XB2- 10BN/35 | 1NO |
| Double arrow signal momentary blue push button | Flat push button | XB2- 10BN/36 | 1NO |
| latching-cabinet latch push button | Flat push button | XB2- 10BNZS | 1NO |
| Momentary illuminated push button | Flat push button | XB2- 10DN | 1NO |
| Momentary illuminated push button | Flat push button | XB2-01DN | 1NC |
| latching-cabinet latch illuminated push button | Flat push button | XB2- 10DNZS | 1NO |
| Momentary push button | Φ 40Mushroom push button | XB2- 10M | 1NO |
| Momentary push button | Φ 40Mushroom push button | XB2-01M | 1NC |
| latching-cabinet latch push button | Mushroom push button | XB2- 10MZS | 1NO |
| Selector switch | Two position maintained | XB2- 10X/21 | 1NO |
| Selector switch | Two position momentary | XB2- 10X/22 | 1NO |
| Selector switch | Three position maintained | XB2-20X/31 | 2NO |
| Selector switch | Three position momentary | XB2-20X/33 | 2NO |
| Long handle selector switch | Two position maintained | XB2- 10XB/21 | 1NO |
| Long handle selector switch | Two position momentary | XB2- 10XB/22 | 1NO |
| Long handle selector switch | Three position maintained | XB2-20XB/31 | 2NO |
| Long handle selector switch | Three position momentary | XB2-20XB/33 | 2NO |
| Illuminated selector switch | Two position maintained | XB2- 10XD/21 | 1NO |
| Illuminated selector switch | Three position maintained | XB2-20XD/31 | 2NO |
| Push lock rotary release button | Φ 40 Emergency push button | XB2-01ZS | 1NC |
| Key-lock selector switch | Two position maintained | XB2- 10Y/21 | 1NO |
| Key-lock selector switch | Two position momentary | XB2- 10Y/22 | 1NO |
| Key-lock selector switch | Three position maintained | XB2-20Y/31 | 2NO |
| Key-lock selector switch | Three position momentary | XB2-20Y/33 | 2NO |
| Momentary push button | Double head momentary push button | XB2- 11B | 1NO1NC |
| Momentary illuminated push button | Double head momentary push button | XB2- 11D | 1NO1NC |
| Two position cross-switch | momentary | XB2-PA22 | |
| Contact module | 1NOor1NC | 10or01 | |
| Notes:1. Packaging quantity： 10pcs in a box,300pcs in a carton. | |||
