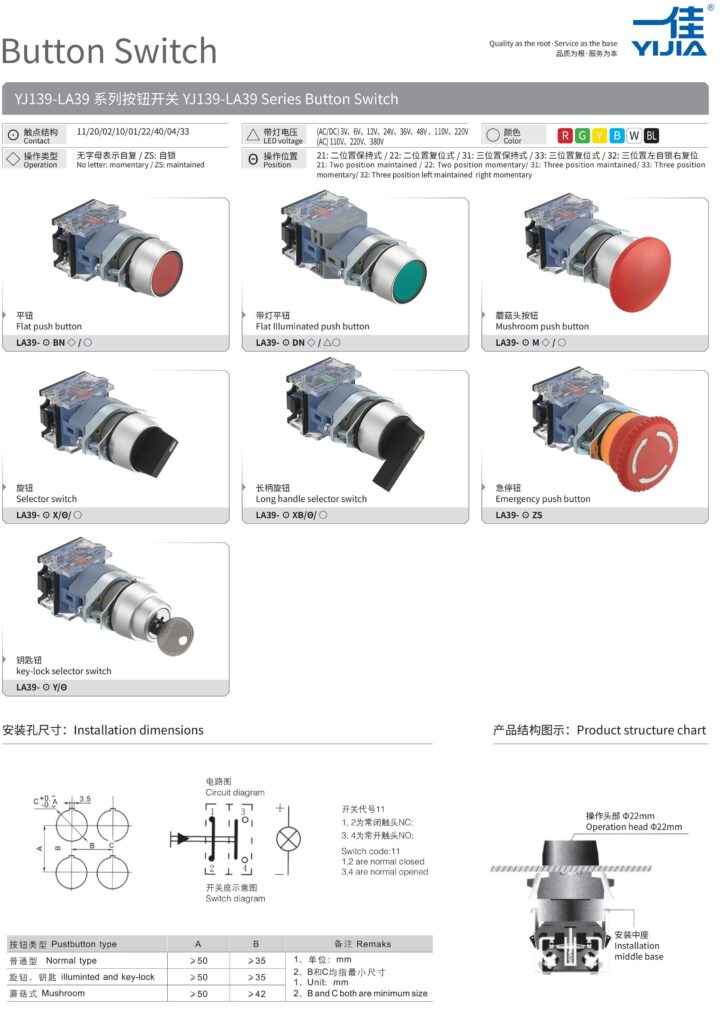

Installation dimensions:22MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.
| Name | Specifications | Model | Notes |
| Momentary push button | Flat push button | LA39- 11BN | 1NO1NC |
| latching-cabinet latch push button | Flat push button | LA39- 11BNZS | |
| Momentary illuminated push button | Flat push button | LA39- 11DN | 1NO1NC |
| latching-cabinet latch illuminated push button | Flat push button | LA39- 11DNZS | |
| Momentary push button | Φ 40 Mushroom push button | LA39- 11M | |
| latching-cabinet latch push button | Mushroom push button | LA39- 11MZS | |
| Selector switch | Two position maintained | LA39- 11X/21 | |
| Selector switch | Two position momentary | LA39- 11X/22 | |
| Selector switch | Three position maintained | LA39-20X/31 | |
| Selector switch | Three position momentary | LA39-20X/33 | |
| Long handle selector switch | Two position maintained | LA39- 11XB/21 | |
| Long handle selector switch | Two position momentary | LA39- 11XB/22 | |
| Long handle selector switch | Three position maintained | LA39-20XB/31 | |
| Long handle selector switch | Three position momentary | LA39-20XB/33 | |
| Push lock rotary release button | Φ 40 Emergency push button | LA39- 11ZS | |
| Key-lock selector switch | Two position maintained | LA39- 11Y/21 | |
| Key-lock selector switch | Two position momentary | LA39- 11Y/22 | |
| Key-lock selector switch | Three position maintained | LA39-20Y/31 | |
| Key-lock selector switch | Three position momentary | LA39-20Y/33 | |
| Notes:1. Packaging quantity： 10pcs in a box,300pcs in a carton. | |||
