Installation dimensions:22MM/30MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary

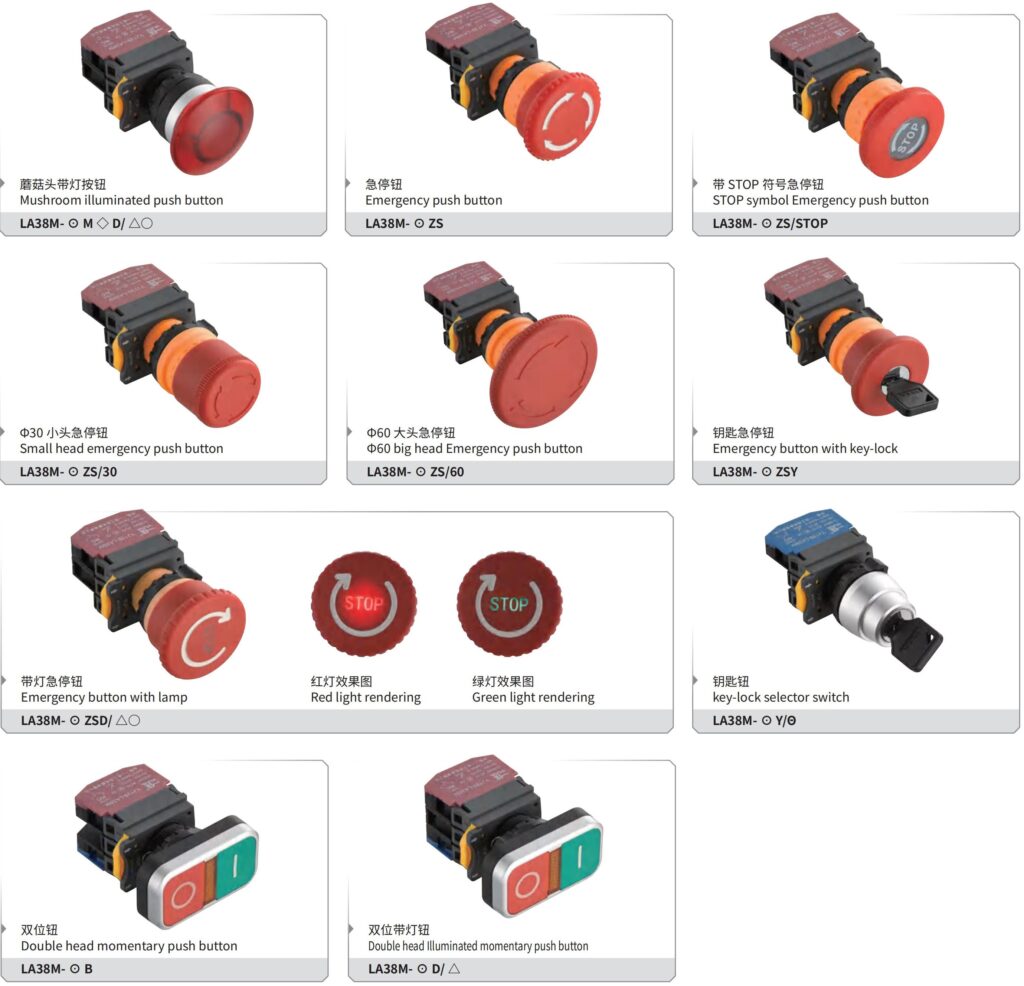

mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.
| Name | Specifications | Model | Notes |
| Momentary push button | Flat push button | LA38M- 10BN | 1NO |
| Flat custom symbol momentary push button | Flat push button | LA38M- 10BN/FH | 1NO |
| latching-cabinet latch push button | Flat push button | LA38M- 10BNZS | 1NO |
| IP67 waterproof momentary push button | Flat push button | LA38M- 10BN/F67 | |
| IP67 waterproof latching-cabinet latch push button | Flat push button | LA38M- 10BNZS/F67 | |
| Momentary illuminated push button | Flat push button | LA38M- 10DN | 1NO |
| latching-cabinet latch illuminated push button | Flat push button | LA38M- 10DNZS | |
| IP67 waterproof momentary illuminated push button | Flat push button | LA38M- 10DN/F67 | |
| IP67 waterproof latching-cabinet latch illuminated push button | Flat push button | LA38M- 10DNZS/F67 | |
| Aluminum ring with ring lamp momentary push button | Flat push button | LA38M- 10E/A | |
| Aluminum ring with ring lamp latching-cabinet latch push button | Flat push button | LA38M- 10EZ/A | |
| Momentary push button | High push button | LA38M- 10GN | |
| latching-cabinet latch push button | High push button | LA38M- 10GNZS | |
| Momentary illuminated push button | High push button | LA38M- 10DGN | |
| latching-cabinet latch illuminated push button | High push button | LA38M- 10DGNZS | |
| Momentary push button | Φ 40Mushroom push button | LA38M- 10M | |
| latching-cabinet latch push button | Mushroom push button | LA38M- 10MZS | |
| Momentary illuminated push button | Φ 40Mushroom push button | LA38M- 10MD | |
| latching-cabinet latch illuminated push button | Mushroom push button | LA38M- 10MZSD | |
| Momentary push button | Φ 60Mushroom push button | LA38M- 10M/60 | Big Mushroom |
| latching-cabinet latch push button | Mushroom push button | LA38M- 10MZS/60 | Big Mushroom |
| Stainless steel head momentary push button | Flat push button | LA38M- 10BN/S | Stainless steel head |
| Stainless steel head latching-cabinet latch push button | Flat push button | LA38M- 10BNZS/S | Stainless steel head |
| Stainless steel head illuminated ring momentary push button | Flat push button | LA38M- 10E/S | Stainless steel head |
| Stainless steel ring lamp momentary button with luminous power logo | Flat push button | LA38M- 10EP/S | Stainless steel head |
| Stainless steel head illuminated ring latching-cabinet latch push button | Flat push button | LA38M- 10EZ/S | Stainless steel head |
| Stainless steel ring lamp latching-cabinet latch button with luminous power logo | Flat push button | LA38M- 10EZP/S | Stainless steel head |
| Selector switch | Two position maintained | LA38M- 10X/21 | |
| Selector switch | Two position momentary | LA38M- 10X/22 | |
| Selector switch | Three position maintained | LA38M-20X/31 | |
| Selector switch | Three position momentary | LA38M-20X/33 | |
| Selector switch | Three position left maintained right momentary | LA38M-20X/32 | |
| Long handle selector switch | Two position maintained | LA38M- 10XB/21 | |
| Long handle selector switch | Two position momentary | LA38M- 10XB/22 | |
| Long handle selector switch | Three position maintained | LA38M-20XB/31 | |
| Long handle selector switch | Three position momentary | LA38M-20XB/33 | |
| Illuminated selector switch | Two position maintained | LA38M- 10XD/21 | |
| Illuminated selector switch | Two position momentary | LA38M- 10XD/22 | |
| Illuminated selector switch | Three position maintained | LA38M-20XD/31 | |
| Illuminated selector switch | Three position momentary | LA38M-20XD/33 | |
| Push lock rotary release button | Φ 40 Emergency push button | LA38M-01ZS | 1NC |
| Φ 40 Emergency button with lamp | Push lock rotary release button | LA38M-01ZSD | |
| Φ 30 Emergency push button | Push lock rotary release button | LA38M-01ZS/30 | |
| Push lock rotary release button | Φ 60 Emergency push button | LA38M-01ZS/60 | 1NC |
| Push lock rotary release button | STOP symbol Emergency push button | LA38M-01ZS/STOP | 1NC |
| Metal head emergency button | Push lock rotary release button | LA38M-01ZS/A | |
| Metal head emergency button | Push lock rotary release button | LA38M-01ZS/B | |
| Emergency button with key-lock | Push lock rotary release button | LA38M-01ZSY | |
| Key-lock selector switch | Two position maintained | LA38M- 10Y/21 | |
| Key-lock selector switch | Two position momentary | LA38M- 10Y/22 | |
| Key-lock selector switch | Three position maintained | LA38M-20Y/31 | |
| Key-lock selector switch | Three position momentary | LA38M-20Y/33 | |
| Momentary push button | Double head momentary push button | LA38M- 11B | |
| Momentary illuminated push button | Double head momentary push button | LA38M- 11D | |
| Contact module | 1NOor1NC | 10or01 | |
| Combined contact module | 2NOor2NCor1NO1NC | 20or02or11 | |
| Notes: 1. All of the above are Φ 22 Product Price， 2. Add 0.52USD per item for product Φ30， Add 1.1USD per item for product Φ30key-lock button。take care Φ The 30 emergency button can only be used for the STOP symbol emergency push button. 3. Packaging quantity： 10pcs in a box,300pcs in a carton. | |||
