Installation dimensions:22MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.
LA36A Series button switch 22MM

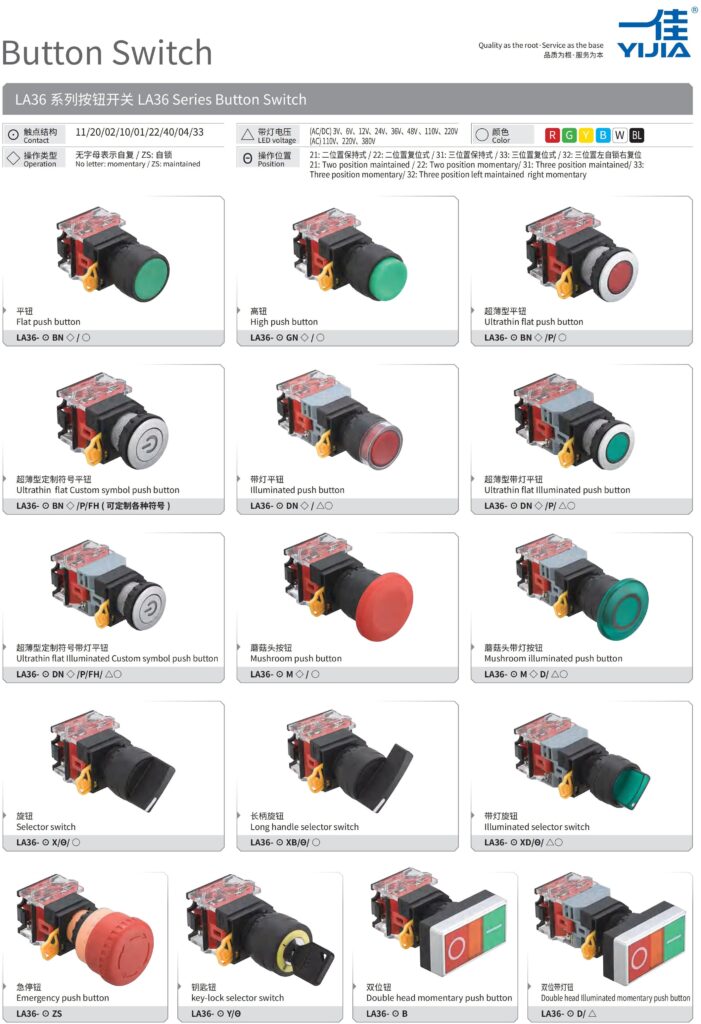

| LA36 Series button switch(Φ 22) | |||
| Name | Specifications | Model | Notes |
| Momentary push button | Flat push button | LA36- 11BN | 1NC1NO |
| latching-cabinet latch push button | Flat push button | LA36- 11BNZS | |
| Momentary illuminated push button | Flat push button | LA36- 11DN | |
| latching-cabinet latch illuminated push button | Flat push button | LA36- 11DNZS | |
| Momentary push button | Ultrathin flat push button | LA36- 11BN/P | |
| latching-cabinet latch push button | Ultrathin flat push button | LA36- 11BNZS/P | |
| Momentary illuminated push button | Ultrathin flat push button | LA36- 11DN/P | |
| Momentary illuminated push button | Ultrathin flat custom symbol push button | LA36- 11DN/P/FH | |
| latching-cabinet latch illuminated push button | Ultrathin flat push button | LA36- 11DNZS/P | |
| latching-cabinet latch illuminated push button | Ultrathin flat custom symbol push button | LA36- 11DNZS/P/FH | |
| Momentary push button | High push button | LA36- 11GN | |
| latching-cabinet latch push button | High push button | LA36- 11GNZS | |
| Momentary push button | Φ 40Mushroom push button | LA36- 11M | |
| latching-cabinet latch push button | Mushroom push button | LA36- 11MZS | |
| Momentary illuminated push button | Φ 40Mushroom push button | LA36- 11MD | |
| latching-cabinet latch illuminated push button | Mushroom push button | LA36- 11MZSD | |
| Selector switch | Two position maintained | LA36- 11X/21 | |
| Selector switch | Two position momentary | LA36- 11X/22 | |
| Selector switch | Three position maintained | LA36-20X/31 | |
| Selector switch | Three position momentary | LA36-20X/33 | |
| Selector switch | Three position left maintained right momentary | LA36-20X/32 | |
| Long handle selector switch | Two position maintained | LA36- 11XB/21 | |
| Long handle selector switch | Two position momentary | LA36- 11XB/22 | |
| Long handle selector switch | Three position maintained | LA36-20XB/31 | |
| Long handle selector switch | Three position momentary | LA36-20XB/33 | |
| Illuminated selector switch | Two position maintained | LA36- 11XD/21 | |
| Illuminated selector switch | Two position momentary | LA36- 11XD/22 | |
| Illuminated selector switch | Three position maintained | LA36-20XD/31 | |
| Illuminated selector switch | Three position momentary | LA36-20XD/33 | |
| Push lock rotary release button | Φ 40 Emergency push button | LA36- 11ZS | |
| Key-lock selector switch | Two position maintained | LA36- 11Y/21 | |
| Key-lock selector switch | Two position momentary | LA36- 11Y/22 | |
| Key-lock selector switch | Three position maintained | LA36-20Y/31 | |
| Key-lock selector switch | Three position momentary | LA36-20Y/33 | |
| Contact module | increase1NO1NC | 11 | 0.83 USD more for it |
| Contact module | increase1NO | 10 | 0.74 USD more for it |
| Contact module | increase1NC | 01 | 0.74 USD more for it |
| Notes:1.Packaging quantity： 10pcs in a box,300pcs in a carton. | |||

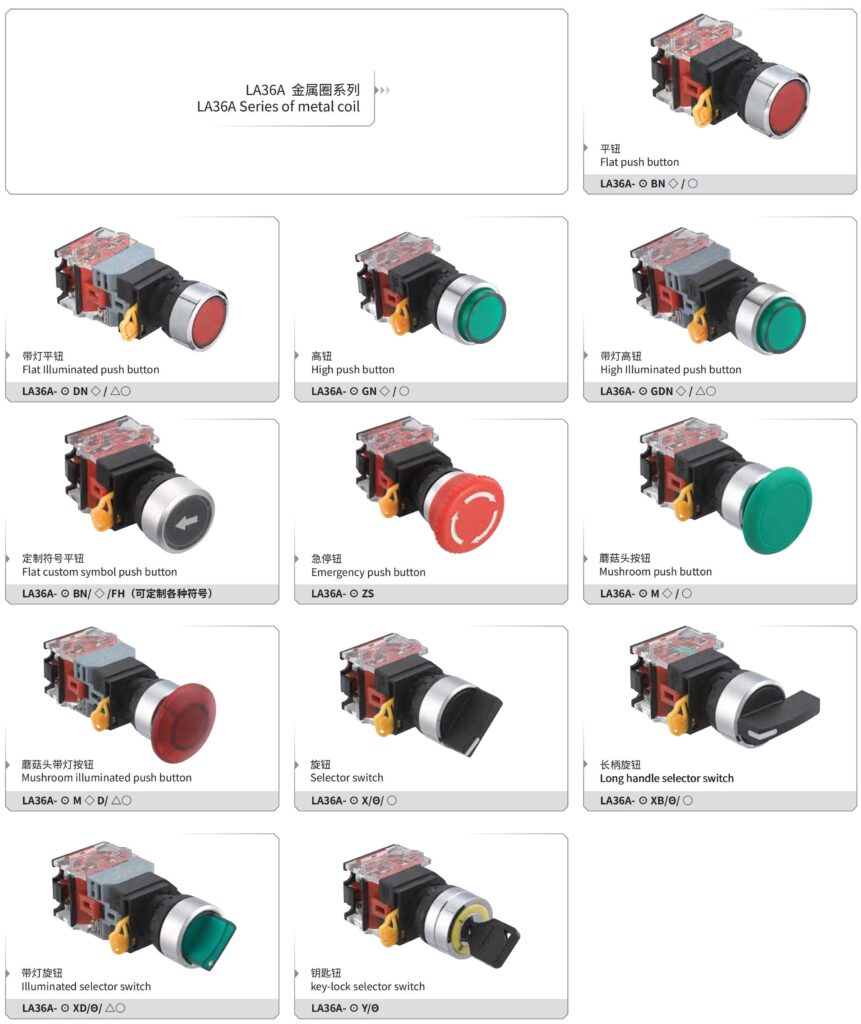

| LA36A Series button switch(Φ 22) | |||
| Name | Specifications | Model | Notes |
| Momentary push button | Flat push button | LA36A- 11BN | 1NC1NO |
| latching-cabinet latch push button | Flat push button | LA36A- 11BNZS | |
| Momentary illuminated push button | Flat push button | LA36A- 11DN | |
| latching-cabinet latch illuminated push button | Flat push button | LA36A- 11DNZS | |
| Momentary push button | High push button | LA36A- 11GN | |
| latching-cabinet latch push button | High push button | LA36A- 11GNZS | |
| Momentary illuminated push button | High push button | LA36A- 11DGN | |
| latching-cabinet latch illuminated push button | High push button | LA36A- 11DGNZS | |
| Momentary push button | Φ 40Mushroom push button | LA36A- 11M | |
| latching-cabinet latch push button | Mushroom push button | LA36A- 11MZS | |
| Momentary illuminated push button | Φ 40Mushroom push button | LA36A- 11MD | |
| latching-cabinet latch illuminated push button | Mushroom push button | LA36A- 11MZSD | |
| Selector switch | Two position maintained | LA36A- 11X/21 | |
| Selector switch | Two position momentary | LA36A- 11X/22 | |
| Selector switch | Three position maintained | LA36A-20X/31 | |
| Selector switch | Three position momentary | LA36A-20X/33 | |
| Selector switch | Three position left maintained right momentary | LA36A-20X/32 | |
| Long handle selector switch | Two position maintained | LA36A- 11XB/21 | |
| Long handle selector switch | Two position momentary | LA36A- 11XB/22 | |
| Long handle selector switch | Three position maintained | LA36A-20XB/31 | |
| Long handle selector switch | Three position momentary | LA36A-20XB/33 | |
| Illuminated selector switch | Two position maintained | LA36A- 11XD/21 | |
| Illuminated selector switch | Two position momentary | LA36A- 11XD/22 | |
| Illuminated selector switch | Three position maintained | LA36A-20XD/31 | |
| Illuminated selector switch | Three position momentary | LA36A-20XD/33 | |
| Push lock rotary release button | Φ 40 Emergency push button | LA36A- 11ZS | |
| Key-lock selector switch | Two position maintained | LA36A- 11Y/21 | |
| Key-lock selector switch | Two position momentary | LA36A- 11Y/22 | |
| Key-lock selector switch | Three position maintained | LA36A-20Y/31 | |
| Key-lock selector switch | Three position momentary | LA36A-20Y/33 | |
| Notes:1.Packaging quantity： 10pcs in a box,300pcs in a carton. | |||
