Installation dimensions:16MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.

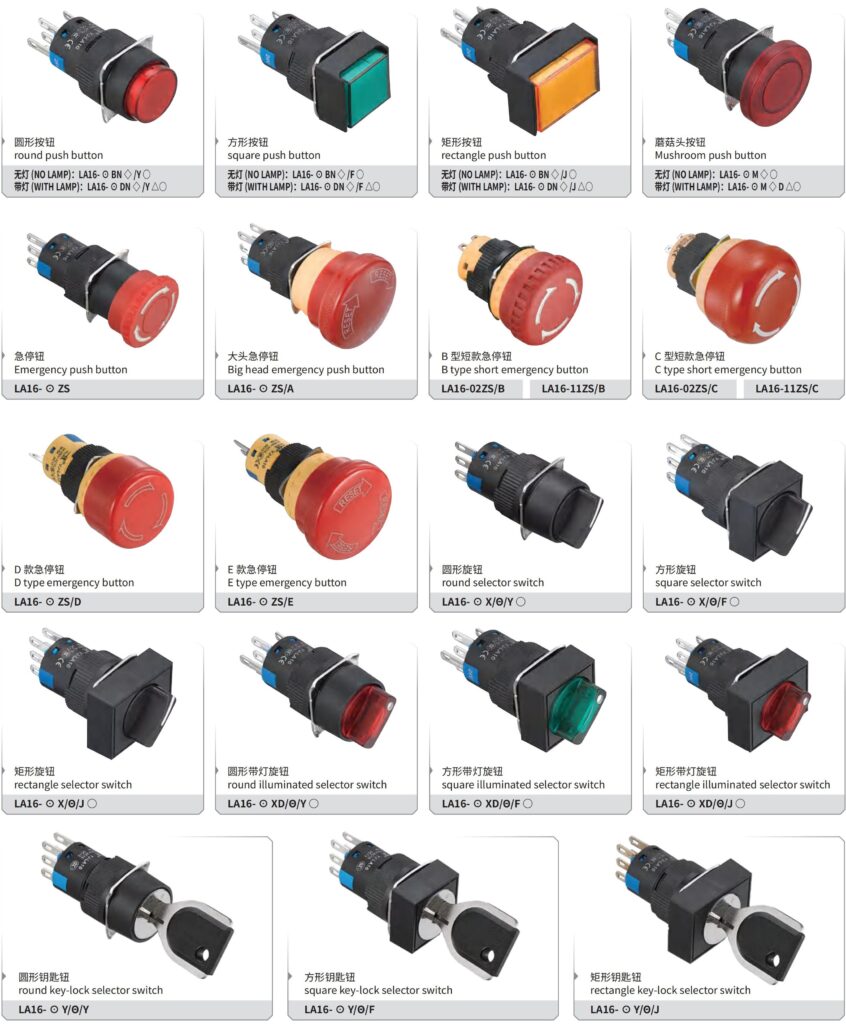

| Name | Specifications | Model | Notes |

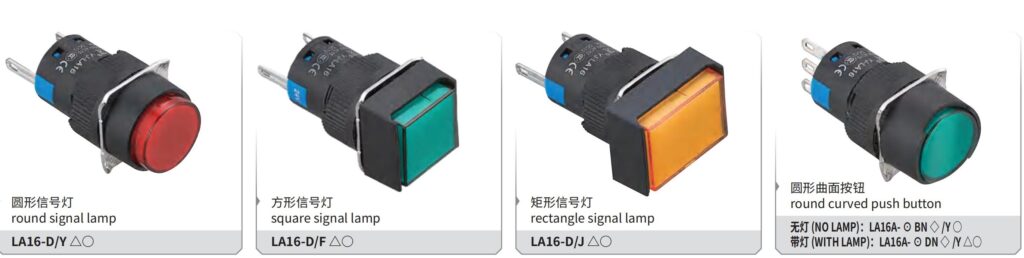

| Signal lamp | Round | LA16-D/Y | |
| Signal lamp | square | LA16-D/F | |
| Signal lamp | rectangle | LA16-D/J | |
| Momentary push button | Round | LA16- 11BN/Y | |
| Momentary illuminated push button | Round | LA16- 11DN/Y | |
| Flat curved momentary push button | Round | LA16A- 11BN/Y | |
| Flat curved illuminated momentary push button | Round | LA16A- 11DN/Y | |
| Maintained push button | Round | LA16- 11BNZS/Y | |
| Maintained push button | Round | LA16- 11DNZS/Y | |
| Flat curved maintained push button | Round | LA16A- 11BNZS/Y | |
| Flat curved Illuminated maintained push button | Round | LA16A- 11DNZS/Y | |
| Momentary mushroom push button | Round | LA16- 11M | |
| Illuminated mushroom push button | Round | LA16- 11MD | |
| Maintained mushroom push button | Round | LA16- 11MZS | |
| Illuminated maintained mushroom push button | Round | LA16- 11MZSD | |
| Selector switch | Round two position | LA16- 11X/21/Y | |
| Illuminated Selector switch | Round two position | LA16- 11XD/21/Y | |
| Selector switch | Round three position | LA16-22X/31/Y | |
| Illuminated Selector switch | Round three position | LA16-22XD/31/Y | |
Push lock rotary release button | Small head Emergency push button | LA16- 11ZS | |
Push lock rotary release button | Big head Emergency push button | LA16- 11ZS/A | |
Push lock rotary release button | B type short emergency push button | LA16-02ZS/B | |
Push lock rotary release button | C type short emergency push button | LA16-02ZS/C | |
| Key-lock selector switch | Round two position | LA16- 11Y/2/Y | |
| Key-lock selector switch | Round two position | LA16-22Y/3/Y | |
| Contact | increase1NO1NC | 11 | |
| Notes： 1. The prices of products with circular, square, and rectangular shapes are consistent. 2. Packaging quantity：push button is 10pcs in a small box，50pcs in a large box；selector switch、mushroom push button、Small head Emergency button is 25pcs in a box,1000pcs in a carton， Big head Emergency button and Key-lock selector switch is 10pcs in a box,400pcs in a carton. | |||
