Installation dimensions:12MM
momentary / latching-cabinet latch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.

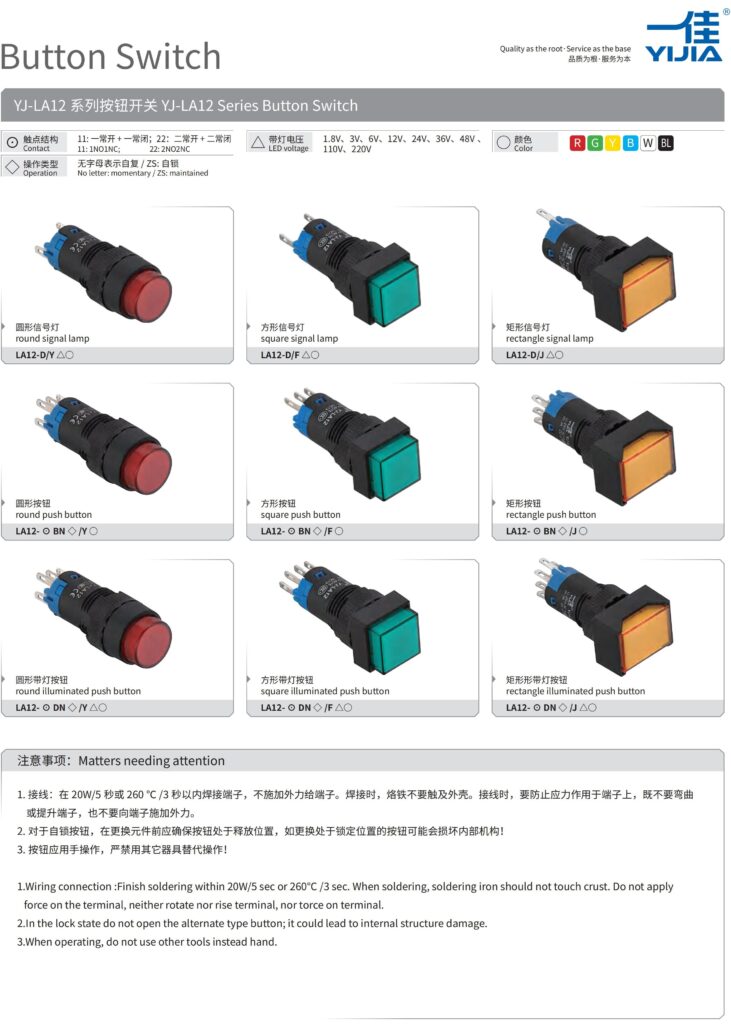

| Name | Specifications | Model | Notes |
| Signal lamp | Round | LA12-D/Y | |
| Signal lamp | square | LA12-D/F | |
| Signal lamp | rectangle | LA12-D/J | |
| Momentary push button | Round | LA12- 11BN/Y | |
| Momentary push button | square | LA12- 11BN/F | |
| Momentary push button | rectangle | LA12- 11BN/J | |
| Momentary illuminated push button | Round | LA12- 11DN/Y | |
| Momentary illuminated push button | square | LA12- 11DN/F | |
| Momentary illuminated push button | rectangle | LA12- 11DN/J | |
| Maintained push button | Round | LA12- 11BNZS/Y | |
| Maintained push button | square | LA12- 11BNZS/F | |
| Maintained push button | rectangle | LA12- 11BNZS/J | |
| Maintained illuminated push button | Round | LA12- 11DNZS/Y | |
| Maintained illuminated push button | square | LA12- 11DNZS/F | |
| Maintained illuminated push button | rectangle | LA12- 11DNZS/J | |
| Contact | increase1NO1NC | 11 | |
| Notes： 1. The prices of products with circular, square, and rectangular shapes are consistent. 2. Packaging quantity：25pcs in a box,1000pcs in a carton. | |||
