Installation dimensions:16MM
momentary / latching-cabinet latch
two selector switch 2 position rotary
three selector switch 3 position rotary
mushroom type emergency stop push button switch
LED lights are available in red, green, blue, yellow, and white for selection
The voltage of the lamp includes: 6V,12V,24V,36V,48V,110V,220V.

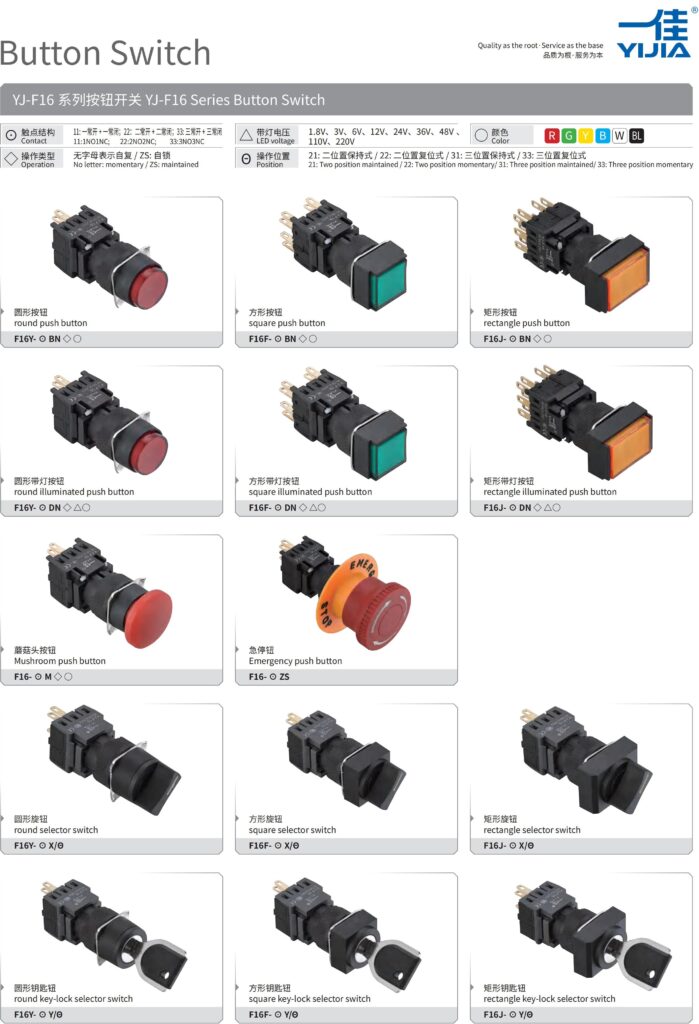

| Name | Specifications | Model | Notes |
| Momentary push button | Round | F16Y- 11BN | |
| Momentary push button | square | F16F- 11BN | |
| Momentary push button | rectangle | F16J- 11BN | |
| Momentary illuminated push button | Round | F16Y- 11DN | |
| Maintained push button | Round | F16Y- 11BNZS | |
| Maintained illuminated push button | Round | F16Y- 11DNZS | |
| Momentary mushroom push button | Round | F16- 11M | |
| Maintained mushroom push button | Round | F16- 11MZS | |
| Round selector switch | Two position maintained | F16Y- 11X/21 | |
| Round selector switch | Two position momentary | F16Y- 11X/22 | |
| Round selector switch | Three position maintained | F16Y-22X/31 | |
| Round selector switch | Three position momentary | F16Y-22X/33 | |
Push lock rotary release button | Emergency push button | F16- 11ZS | |
| Round key-lock selector switch | Two position maintained | F16Y- 11Y/21 | |
| Round key-lock selector switch | Two position momentary | F16Y- 11Y/22 | |
| Round key-lock selector switch | Three position maintained | F16Y-22Y/31 | |
| Round key-lock selector switch | Three position momentary | F16Y-22Y/33 | |
| Contact | increase1NO1NC | 11 | |
| Notes： 1. The prices of products with circular, square, and rectangular shapes are consistent. 2. Packaging quantity：push button is 10pcs in a small box，50pcs in a large box， Emergency button 8pcs in a small box. | |||
