16mm 5A-10A metal button switch: dual-mode function accurately responds to industrial needs
This 16mm metal button switch is designed specifically for high load scenarios in 5A-10A, offering two operating modes: Momentary and Latching, to meet the diverse needs of industrial control
Self resetting button (Momentary)
Instantaneous trigger: press to conduct, release to reset, suitable for scenarios such as emergency stop, jog debugging, etc. that require rapid power outage.
High response speed: Contact stroke of 0.7mm, contact resistance of silver nickel alloy contact ≤ 20m Ω, supporting 5A-10A instantaneous current (0.5 seconds).
Typical applications: AGV emergency stop, laboratory equipment startup, single step operation of robotic arm.
Self locking button (Latching)
State lock: Keep on/off after pressing, suitable for power switch or mode switching.
Mechanical stability: 304 stainless steel spring plate+buckle structure.
Typical applications: main control switch for photovoltaic inverters, continuous operation of packaging machines, power control for medical equipment.
Core performance: IP67 waterproof and dustproof, wide temperature range operation from -30 ℃ to 75 ℃, thread locking seismic design, CE certification passed.
The color of LED lights: red, green, blue, yellow, white. Customizable dual color LED (red/green) indicates the status.
Customizable voltage: 3V 6V 12V 24V 36V 48V 110V 240V AC/DC.

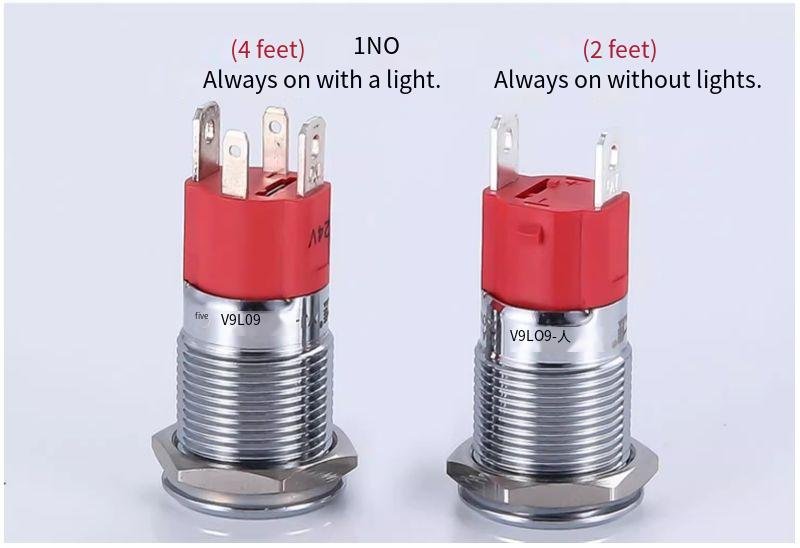

2/4 pin led metal push button light switch 10A

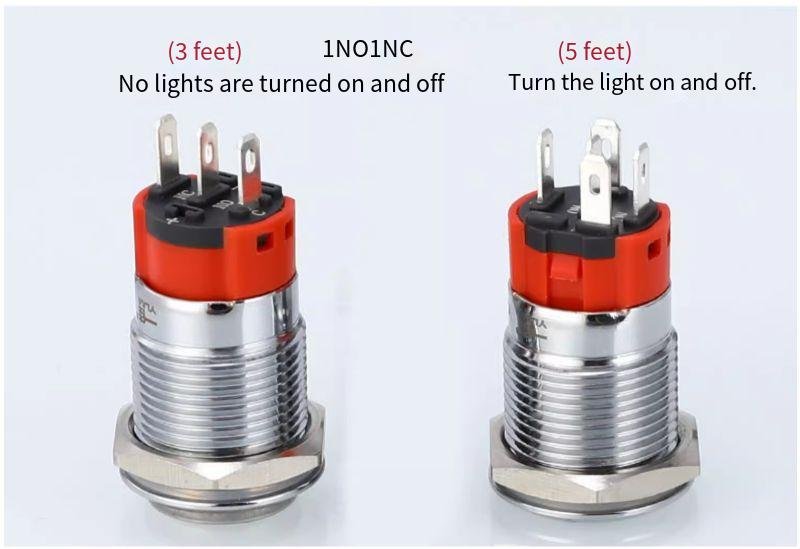

3/5 pin led metal push button light switch 5A
